1987-96 Ford Bronco air cleaner assembly diagrams for 4.9L 5.0L…

‹ ›

DiagramsView all 474

Wiring pinout diagram for MLPS and PNP transmission switches

Throttle valve cable adjustment diagrams for 1992 5.0L Ford transmission

Wiring diagram for 1996 F-150 and Bronco automatic transmission controls

Ford 4.9L inline-six engine exploded parts diagram, upper and lower components with part numbers

Exploded parts diagram of a Borg-Warner BW 1345 transfer case

NP 208F transfer case diagram with torque specs and power-flow cutaways

Trailer wiring connector diagram chart: 4-pin, 6-pin, 7-blade and 7-pin round plugs

Ford service diagram of EGR tubes for 5.0L and 5.8L V8 engines

Diagram of 1992-96 Ford starter and battery wiring with labeled views and cable routing

Spark Plug Diagnosis chart with fouling examples and cold vs hot plug diagrams

'80-96 Heater Core Installation diagram with labeled plenum and core parts

Exploded line diagrams of 80-89 captain's chairs and passenger seat base details

1980-86 instrument panel wiring harness diagram with labeled components

Diagram explaining an early engine calibration label and its identification codes

474photos in this albumView all

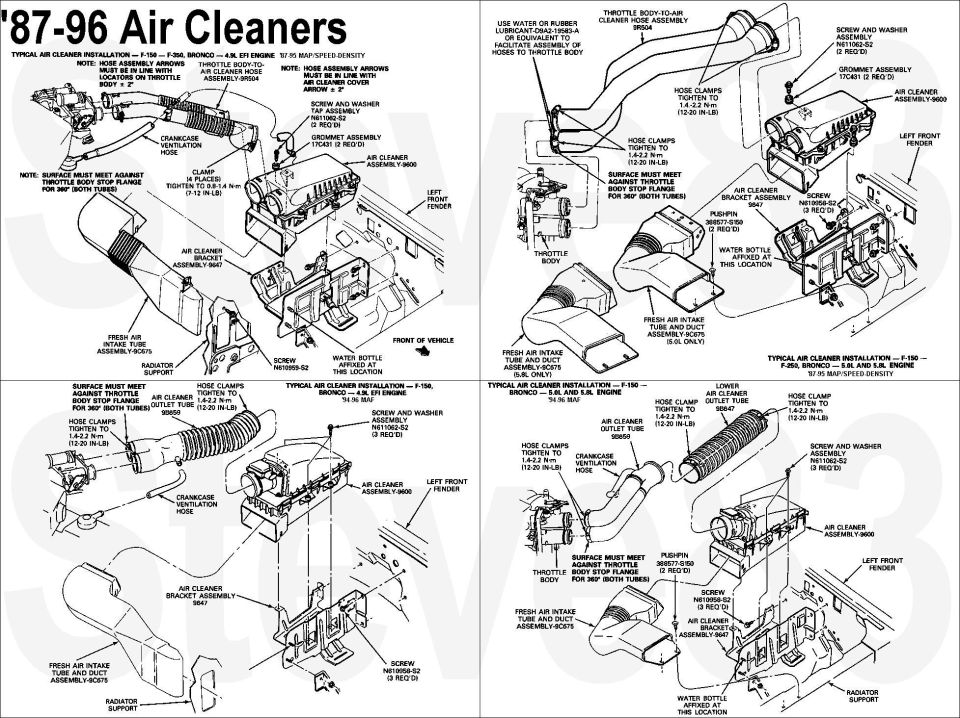

'87-96 Air Cleaners Motorcraft FA1046 K&N 33-2023
IF THE IMAGE IS TOO SMALL, click it.

Top 2 are MAP (speed-density) '87-95; bottom 2 are MAF '94-96.
Left 2 are 4.9L I6 (and 7.5L V8 ); right 2 are 5.0L/5.8L V8.

9B659 Air Cleaner Outlet Tube F6TZ9B659AD
9C658 is actually 2 pieces for 5.0L/5.8L.
Bracket to Fender Screw N610959S2
Overflow/Washer Tank & forward support Nut N621906S441/N621906S2

V8 MAF . . . . . . . . . 4.9L MAF
.

Lightnings are V8 MAP regardless of year, but use an intake plenum more like a car's.

The best air filter is either MotorCraft, Purolator (probably the OEM for Ford/MotorCraft filters), Wix, or K&N (when properly oiled). This one was still spotlessly clean on the clean side:
