Exploded line diagrams of 80-89 captain's chairs and passenger s…

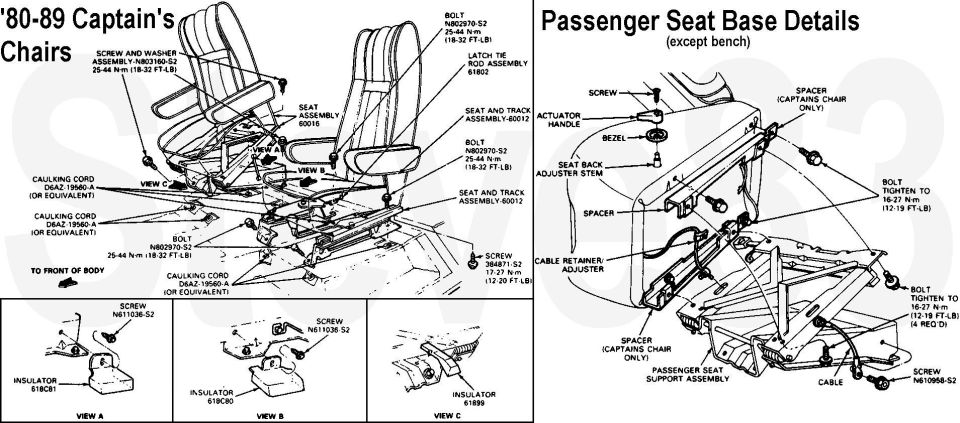

Exploded line diagrams of 80-89 captain's chairs and passenger seat base details
Exploded line diagrams of 80-89 captain's chairs and passenger seat base detailsOriginal file
Exploded line diagrams of 80-89 captain's chairs and passenger seat base details

DiagramsView all 474

Trailer wiring connector diagram chart: 4-pin, 6-pin, 7-blade and 7-pin round plugs 1987-96 Ford Bronco air cleaner assembly diagrams for 4.9L 5.0L 5.8L engines Ford service diagram of EGR tubes for 5.0L and 5.8L V8 engines Diagram of 1992-96 Ford starter and battery wiring with labeled views and cable routing 1983 Ford Bronco photo Spark Plug Diagnosis chart with fouling examples and cold vs hot plug diagrams '80-96 Heater Core Installation diagram with labeled plenum and core parts Exploded line diagrams of 80-89 captain's chairs and passenger seat base details 1980-86 instrument panel wiring harness diagram with labeled components Diagram explaining an early engine calibration label and its identification codes Diagrams of 4.9L and 5.0L/5.8L engine block heaters with numbered parts table Illustrated guide titled Fusible Link Wires Repair showing splice and butt-connector repair methods Exploded line diagram of a 300ci carbureted air cleaner with torque specs 1983 Ford Bronco photo Tire wear diagnosis chart matching tread patterns to conditions and causes 1986 fuse block diagram labeling each fuse amperage and circuit function 474photos in this albumView all

'80-89 Captain's Chairs
IF THE IMAGE IS TOO SMALL, click it.
