M5R1 / M5R2 5-Speed Manual Transmission Exploded Parts Diagram - Ford F-150

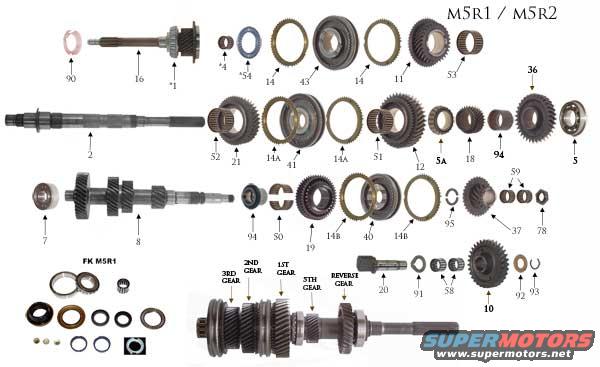

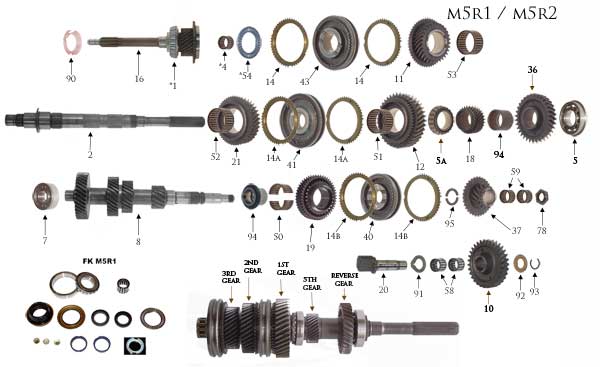

This document is an exploded parts diagram for the Mazda-built M5R1 / M5R2 5-speed manual transmissions, as used in Ford light trucks. The diagram shows the transmission's internal components laid out in exploded view across several rows: the input shaft assembly, output/mainshaft with its gears, synchronizer rings and hubs, bearings, snap rings, thrust washers, and the countershaft assembly. Each component is labeled with a numeric callout (e.g., 90, 16, 43, 14, 11, 53, 36, 52, 21, 14A, 41, 51, 12, 5A, 18, 94, 5, 7, 8, 50, 19, 14B, 40, 95, 59, 37, 78, 20, 91, 92, 93, 10) that would correspond to a parts legend, which is not included on this page. A separate small-parts grouping is labeled 'FK M5R1', apparently a rebuild kit (seals, bearings, small hardware). The lower portion shows the assembled mainshaft with gear positions identified: 3rd gear, 2nd gear, 1st gear, 5th gear, and reverse gear. The diagram is useful for identifying gear order on the mainshaft, locating synchronizer components, and referencing part callout numbers when ordering rebuild parts, though the accompanying number-to-part-name legend must be found on another page of the set.
