Ford Bronco Roof Side Panel Seals D8TZ-98513C22-PR Part Diagram (78-96)

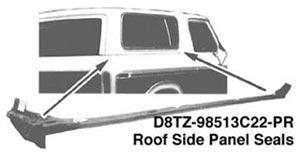

This is a small scanned illustration from Ford parts/accessory literature showing the rear body and removable roof section of a Ford Bronco. Two arrows point from the part number callout to the lower edges of the fiberglass roof/side panel area, identifying the location of the Roof Side Panel Seals. The only text visible on the document is the Ford part number D8TZ-98513C22-PR and the label 'Roof Side Panel Seals.' A reader can learn the correct Ford part number for the weatherstrip seals that run along the roof side panels where the removable top meets the body, and can see visually where those seals are installed on the vehicle. The 'D8' prefix in the part number follows Ford's part numbering convention, suggesting a 1978-era original design. The uploader filed this under a 1996 Ford Bronco with a filename indicating applicability to 1978-1996 tailgate/weatherseal parts; the document itself does not state a year or model range in text, though the illustration matches the full-size Bronco body style. No fuse data, wiring, torque values, or other specifications appear in this image.
