Where is the power distribution box located on a 1996 Ford Bronco?

On the driver's side of the engine compartment, between the air cleaner and the windshield.

Which relay is the fuel pump relay in the 1996 Bronco power distribution box?

Relay 2 is the fuel pump relay. Relay 1 is the PCM relay, Relay 3 is the horn, Relay 4 is trailer tow lamps, and Relay 5 is the ABS pump motor.

Which fuse feeds the fuel pump on a 1996 Bronco?

Fuse position 16 is the Fuel Pump Feed, and fuse position 9 covers the Fuel Pump Relay Coil & Powertrain Control System.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “pukin' dogII”/ Photo supermotors.net/registry/media/877851

1996 Ford Bronco Power Distribution Box Diagram - Fuel Pump & PCM Relays

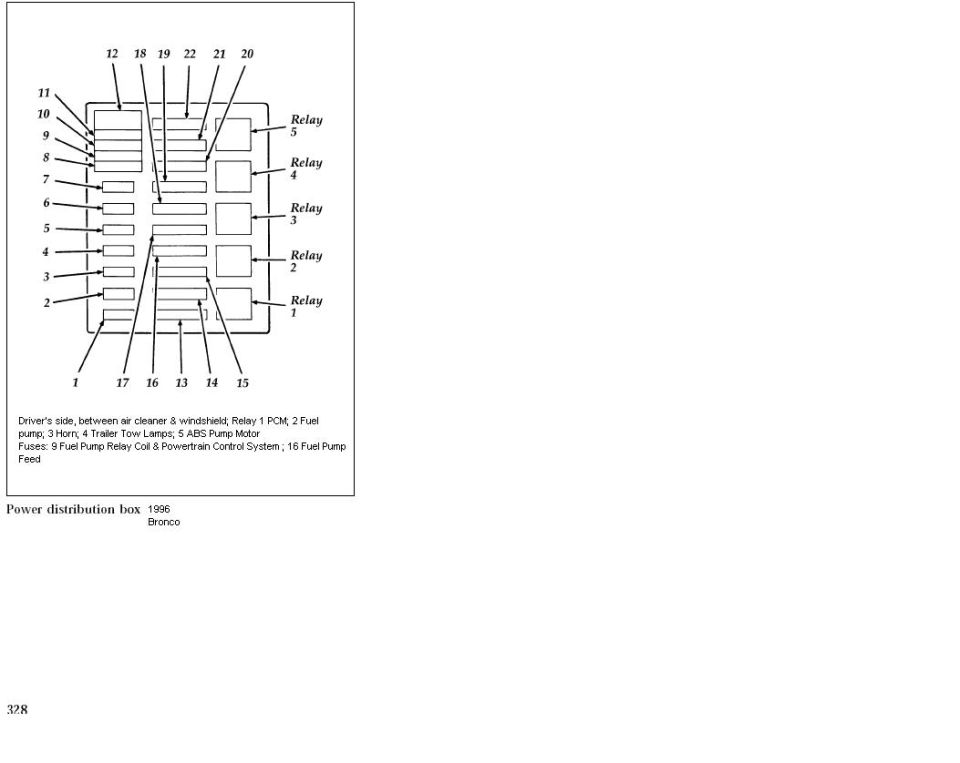

1996 Ford Bronco power distribution box fuse and relay layout, page 328

‹ ›

1996 Bronco driver-side power distribution box layout: relay positions 1-5 and numbered fuses including Relay 1 PCM, 2 Fuel pump, 3 Horn, 4 Trailer Tow Lamps, 5 ABS Pump Motor.

AI caption July 2011 · Photo 141 of 224

This document is a scanned diagram of the engine-compartment power distribution box for a 1996 Ford Bronco. The diagram shows the physical layout of the box, which is located on the driver's side between the air cleaner and the windshield. Numbered callouts identify 22 fuse/component positions arranged in rows, along with five relay positions labeled Relay 1 through Relay 5 along the right side of the box. The legend identifies the relays as follows: Relay 1 is the PCM (Powertrain Control Module) relay, Relay 2 is the fuel pump relay, Relay 3 is the horn relay, Relay 4 is the trailer tow lamps relay, and Relay 5 is the ABS pump motor relay. Two fuse positions are specifically identified: fuse 9 for the Fuel Pump Relay Coil & Powertrain Control System, and fuse 16 for the Fuel Pump Feed. A reader can use this diagram to locate the fuel pump relay, PCM relay, and related fuses when diagnosing fuel pump or no-start problems on a 1996 Bronco. The page is marked 328 and captioned 'Power distribution box 1996 Bronco.' No amperage ratings or full fuse legend are provided—only the fuel-pump-related positions are called out.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Where is the power distribution box located on a 1996 Ford Bronco?: On the driver's side of the engine compartment, between the air cleaner and the windshield.
Which relay is the fuel pump relay in the 1996 Bronco power distribution box?: Relay 2 is the fuel pump relay. Relay 1 is the PCM relay, Relay 3 is the horn, Relay 4 is trailer tow lamps, and Relay 5 is the ABS pump motor.
Which fuse feeds the fuel pump on a 1996 Bronco?: Fuse position 16 is the Fuel Pump Feed, and fuse position 9 covers the Fuel Pump Relay Coil & Powertrain Control System.
How many relays are in the 1996 Bronco power distribution box?: The diagram shows five relay positions, labeled Relay 1 through Relay 5, along the right side of the box.
