1996 Ford Bronco Tailgate Torsion Bar Mounts Diagram - Brackets & Torque Spec

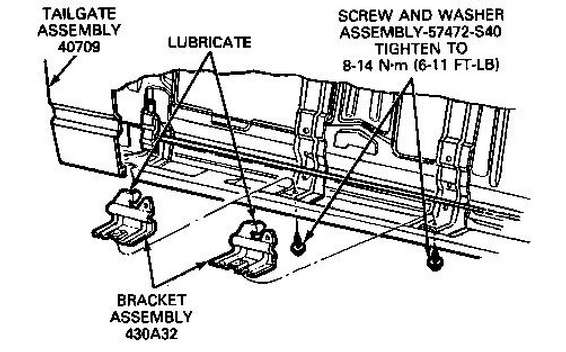

This document is an exploded parts/installation diagram showing the tailgate torsion bar mounting hardware on a Ford Bronco. It depicts the underside of the tailgate assembly (part reference 40709) with two bracket assemblies (part reference 430A32) that secure the torsion bar to the body. Callout arrows identify the screw and washer assemblies (part number 57472-S40) that fasten the brackets, along with the specified torque of 8-14 N·m (6-11 ft-lb). Two points along the torsion bar are labeled 'LUBRICATE,' indicating locations that should be greased during service or installation. A reader can learn the correct part base numbers for the tailgate and torsion bar mounting brackets, the fastener specification, the required tightening torque, and where lubrication is needed when servicing the tailgate torsion bar mounts. The diagram itself carries no year, model, or engine designation, but it was uploaded to a 1996 Ford Bronco gallery alongside other 1996 Bronco service diagrams, and the tailgate configuration shown is consistent with a full-size Bronco tailgate.
