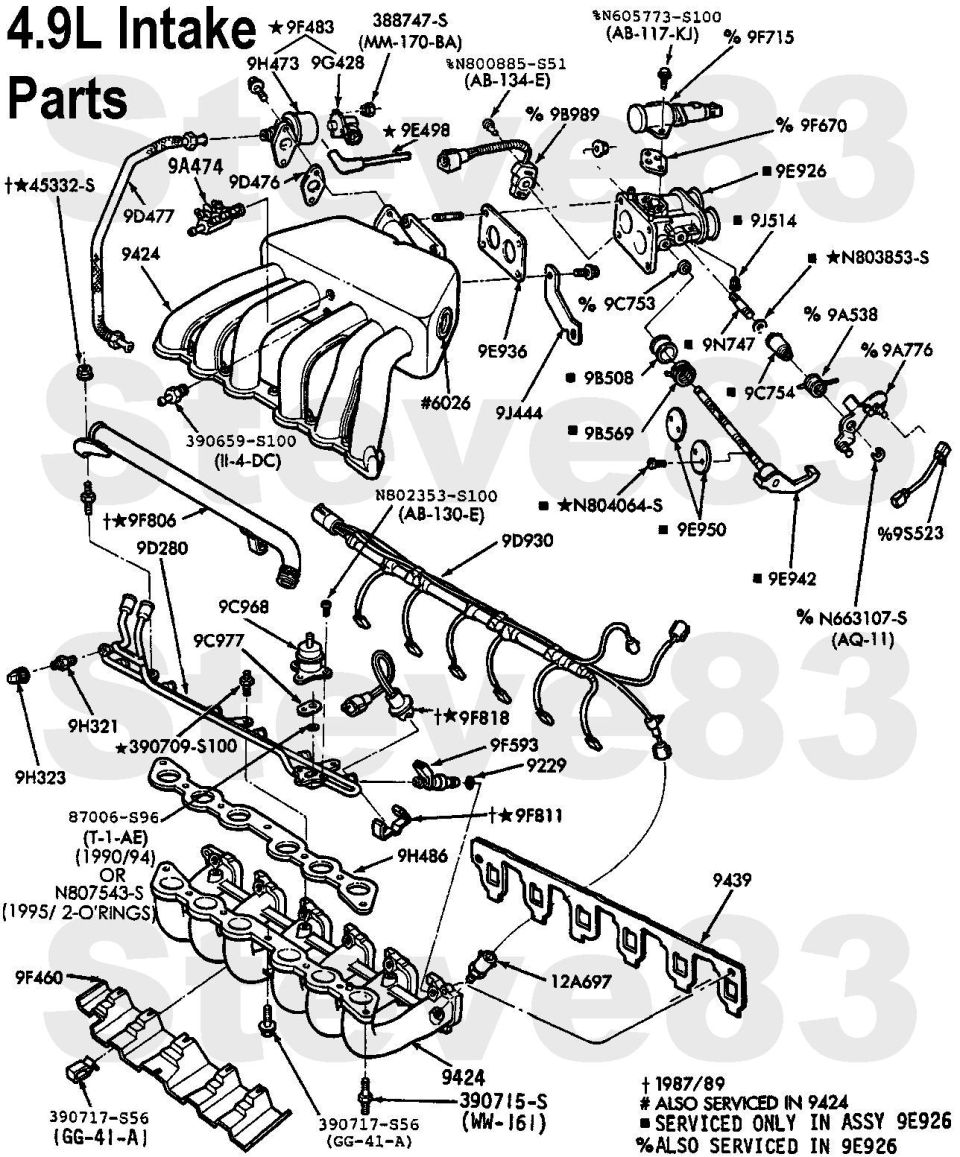

4.9L Intake Parts

12A697 - air charge temperature (ACT) sensor (intake air temperature/IAT sensor) [url=https://www.amazon.com/dp/B000C7UNXK]StandardAX3[/url] ('87-95 only w/MAP)
9424 - lower intake E7TZ9424D
9439 - intake (only) manifold gasket E7TZ9439A; service intake & exhaust gasket
9B989 - throttle position sensor (TPS) F2TZ9B989A, F2TF9B989AA, [url=https://www.amazon.com/dp/B000X3IJL6]MotorCraft CX1419[/url], Standard TH76
9C968 - fuel pressure regulator early F4TZ9C968A/CM4763; late YL3Z-9C968-CARM, F5TE9C968BA, F5TZ9C968B, F5TZ9C968BA, [url=https://www.amazon.com/dp/B000C83QQU]Standard PR208[/url], [url=https://www.amazon.com/dp/B07HRKG5VT]Walker 2551080[/url]
9C977 - regulator gasket 87006-S96
9D280 - fuel rail
9E396 - throttle body gasket F5TZ9E936BA, E7TE9E936AA, E7TZ9E936A, E7TE9E936AB, E7TZ9E936A, E7TZ9E936B, [url=https://www.amazon.com/dp/B000C2G7SK]Fel-Pro 60846[/url], [url=https://www.amazon.com/dp/B007DKPDLG]MAHLE G30944[/url], VICTOR REINZ 711372400
9E926 - throttle body F6PZ9E926DA w/E4OD, F6PZ9E926GA others
9F460 - intake heat shield
9F670 - IAC gasket E7SZ9F670A
9F715 - idle air control (IAC) solenoid valve F2DZ9F715C, [url=https://www.amazon.com/dp/B000C7WQXA]Standard AC33[/url], [url=https://www.amazon.com/dp/B000C7WQXA]BWD 21927[/url], Standard AC108, [url=https://www.amazon.com/dp/B00T1BPMTS]Walker 215-2014[/url]
9F806 - injector blower manifold ('87-88 only)
9G428 - exhaust valve position (EVP) sensor [url=https://www.amazon.com/dp/B000O08TIQ]F2ZZ9G428B[/url] [url=https://www.amazon.com/dp/B000C5DH0I]MotorCraft CX1464[/url], [url=]https://www.amazon.com/dp/B004Y01WAY]Standard VP1T[/url], [url=]https://www.amazon.com/dp/B000C805PA]Standard VP1[/url]
9H321 - schraeder valve
9H321 - schraeder valve
9H323 - schraeder valve cap
9H486 - plenum gasket E7TZ9H486B
390715-S (WW-161) - plenum stud bolt
390717-S56 (GG-41-A) - heat shield clip
