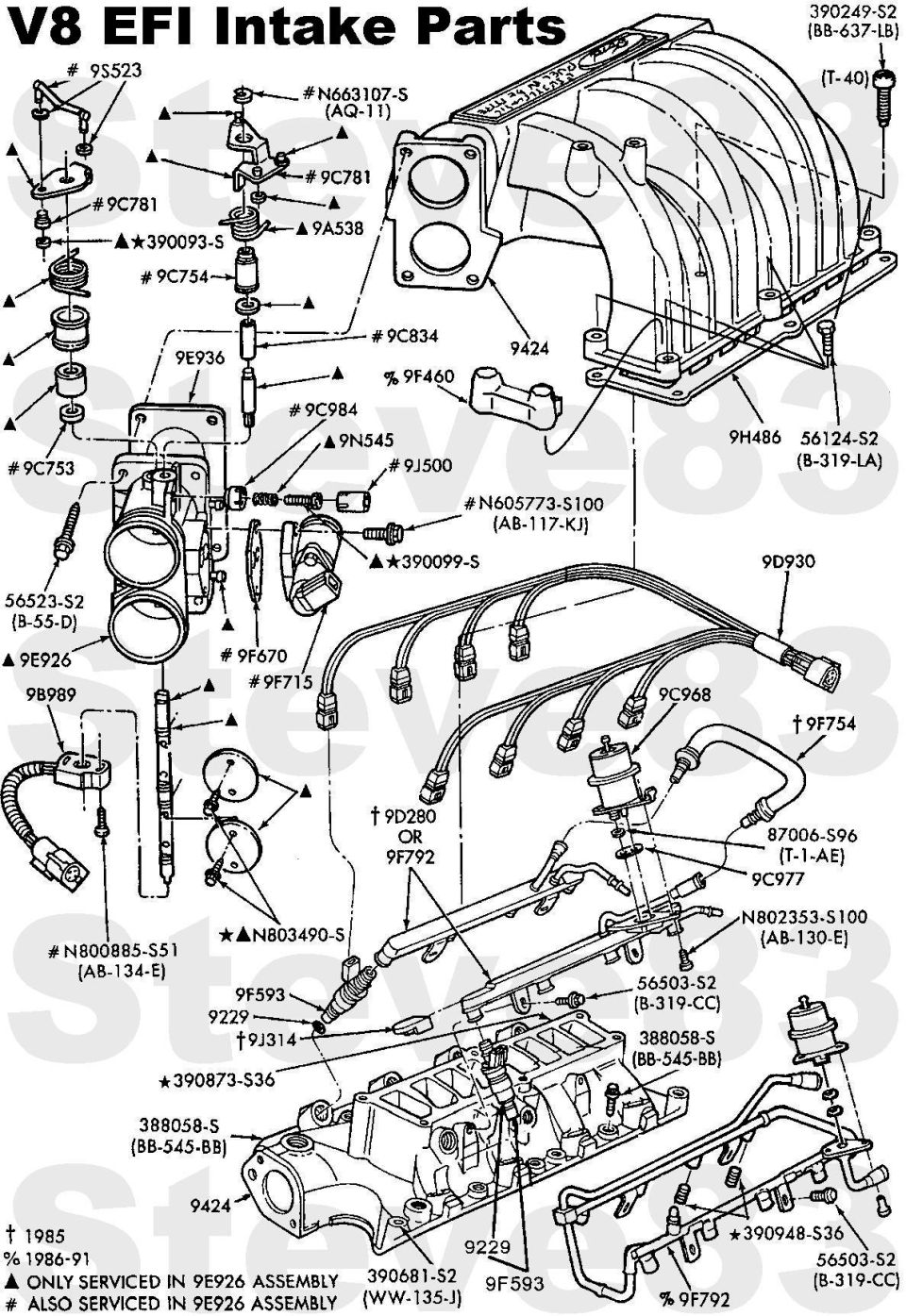

V8 EFI Intake Parts
IF THE IMAGE IS TOO SMALL, click it.
Occasionally, V8s will exhibit a vacuum leak due to the plenum gasket (9H486) being sucked in; usually under the plenum (Right side) near the #3 or #7 runners.

383058-S - Bolt, Fuel Rail (B-319-CC)
390093-S - E-ring
390099-S - Screw, Throttle Stop
390249-S2 - Bolt, Plenum (Torx40 BB-637-LB)
56124-S2 - Bolt, Plenum (Hex B-319-LA)
56503-S2 - Bolt, Fuel Rail
56523-S2 - Screw, TB
87006-96 - O-ring, FPR
9229 - O-ring, Injector
9424 - Intake Manifold (Lower 9K461) & Plenum (Upper 9425)
9A538 - Spring, Throttle Lever
9B989 - Throttle Position Sensor (TPS)
9C753 - Spacer, Throttle Shaft
9C754 - Spacer, Throttle Shaft
9C781 - Bushing, Throttle Pushrod
9C834 - Bushing, Throttle Shaft
9C984 - Screw Cover, Base
9C977 - Fuel Pressure Regulator
9C997 - Gasket, FPR
9D280 - Fuel Rail (1985 only)
9D930 - Harness, Fuel Injectors
9F460 - Crash Cover, Plenum Bolts
9F593 - Injector & O-ring
9F670 - Gasket, IAC
9F754 - Fuel Line, Intermediate (1985 only)
9E926 - Throttle Body Assembly
9E936 - Gasket, TB
9F792 - Fuel Rail
9F715 - Idle Air Control (IAC) Solenoid Valve
9H486 - Gasket, Plenum
9J314 - Crash Cover, Fuel Rail
9J500 - Screw Cover, Cap
9N545 - Spring, Throttle Stop Screw
9S523 - Bushing, Throttle Pushrod
N605773-S100 - Screw, IAC (AB-117-KJ)
N663107-S - E-ring
N802353-S100 - Screw, FPR (AB-130-E)
N803490-S - Screw, Throttle Plate
N800885-S51 - Screw, TPS (AB - 134-E)
Throttle linkage cover (not shown) E9TA9E766AA
