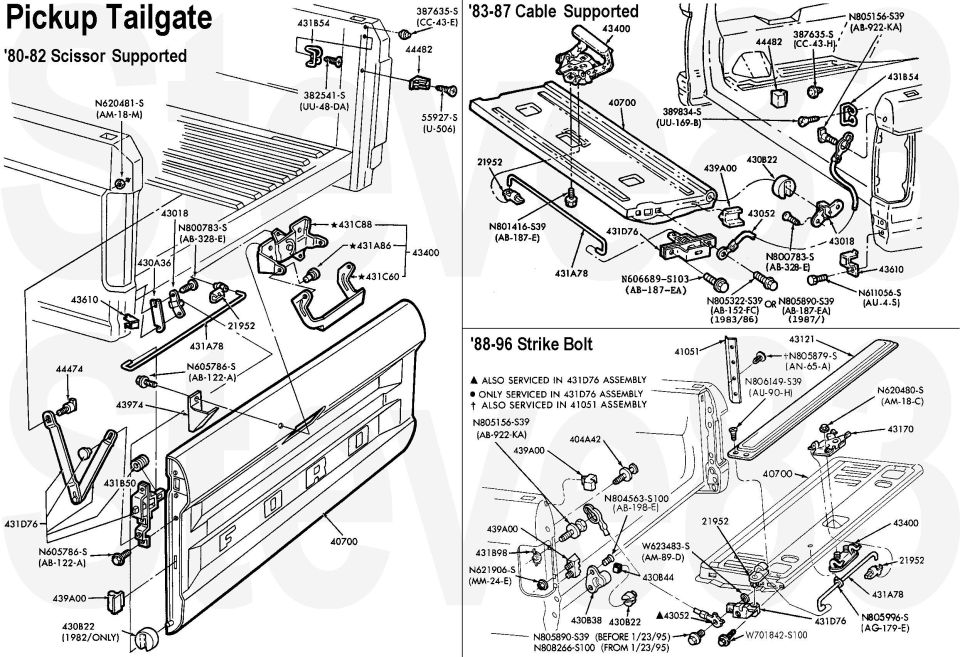

Exploded parts diagrams of pickup tailgate assemblies by year

Exploded parts diagrams of pickup tailgate assemblies by year
Exploded parts diagrams of pickup tailgate assemblies by yearOriginal file
Exploded parts diagrams of pickup tailgate assemblies by year

DiagramsView all 474

Exploded parts diagram of an auxiliary heater assembly 1983 Ford Bronco photo Diesel fuel lines exploded routing diagram with dual and midship tank callouts 1983 Ford Bronco photo Exploded parts diagram of a Mazda M5OD-R2 manual transmission Headlight aim adjustment instructions for 1980-86 and 1992-96 Choke heat tube diagram for I6 1-bbl and V8 2-bbl engines with part numbers Exploded parts diagrams of pickup tailgate assemblies by year Exploded diagrams of pickup bed construction for single and dual wheels 1983 Ford Bronco photo Parts diagram of an armrest bench seat with labeled frame, pad, cover and spring components 1983 Ford Bronco photo Radiator construction exploded diagram with part numbers for tanks, gaskets and oil cooler Exploded diagram of an ITT automatic reel light assembly Line diagram of a gutter-mount roof rack with locking knob and keys Bronco seat belt assembly parts diagram for 1980-91 474photos in this albumView all

'80-96 Tailgate Latches
IF THE IMAGE IS TOO SMALL, click it.

Guide 44482

See also:
. . .

https://www.dennis-carpenter.com/trucks/tailgate/tailgates/f2tz-99425a34-a-os-tailgate-finish-panel-smo

Trim Panel Mounting Clips (E7TB9942502,E7TB9942596,E9TB994250,E9TB9942596)

Owner caption · Photo 3830 of 6546
