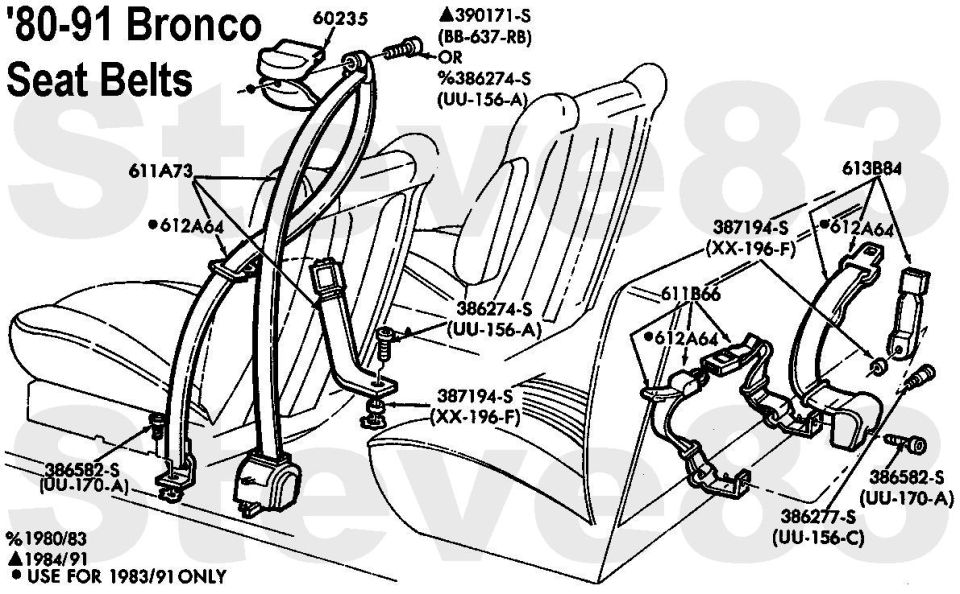

Bronco seat belt assembly parts diagram for 1980-91

'87-91 Bronco Seat Belts
IF THE IMAGE IS TOO SMALL, click it.

The rear inboard position shows the buckles routed through the upholstery & the reels in the gap, which is the '87-91 configuation. '92-96 Broncos have only buckles mounted to the seat (reels on the wheelwells) and they come through the upholstery; '78-86 have the buckles in the gap with the reels.



ALL SAFETY BELT ASSEMBLIES INCLUDING RETRACTORS AND ATTACHING HARDWARE SHOULD BE INSPECTED AFTER ANY COLLISION. FORD RECOMMENDS THAT ALL SAFETY BELT ASSEMBLIES IN USE DURING A COLLISION BE REPLACED UNLESS THE COLLISION WAS MINOR AND A QUALIFIED TECHNICIAN FINDS THAT THE BELTS SHOW NO DAMAGE AND CONTINUE TO OPERATE PROPERLY. SAFETY BELT ASSEMBLIES NOT IN USE DURING A COLLISION SHOULD ALSO BE INSPECTED AND REPLACED IF EITHER DAMAGE OR IMPROPER OPERATION IS NOTED.
