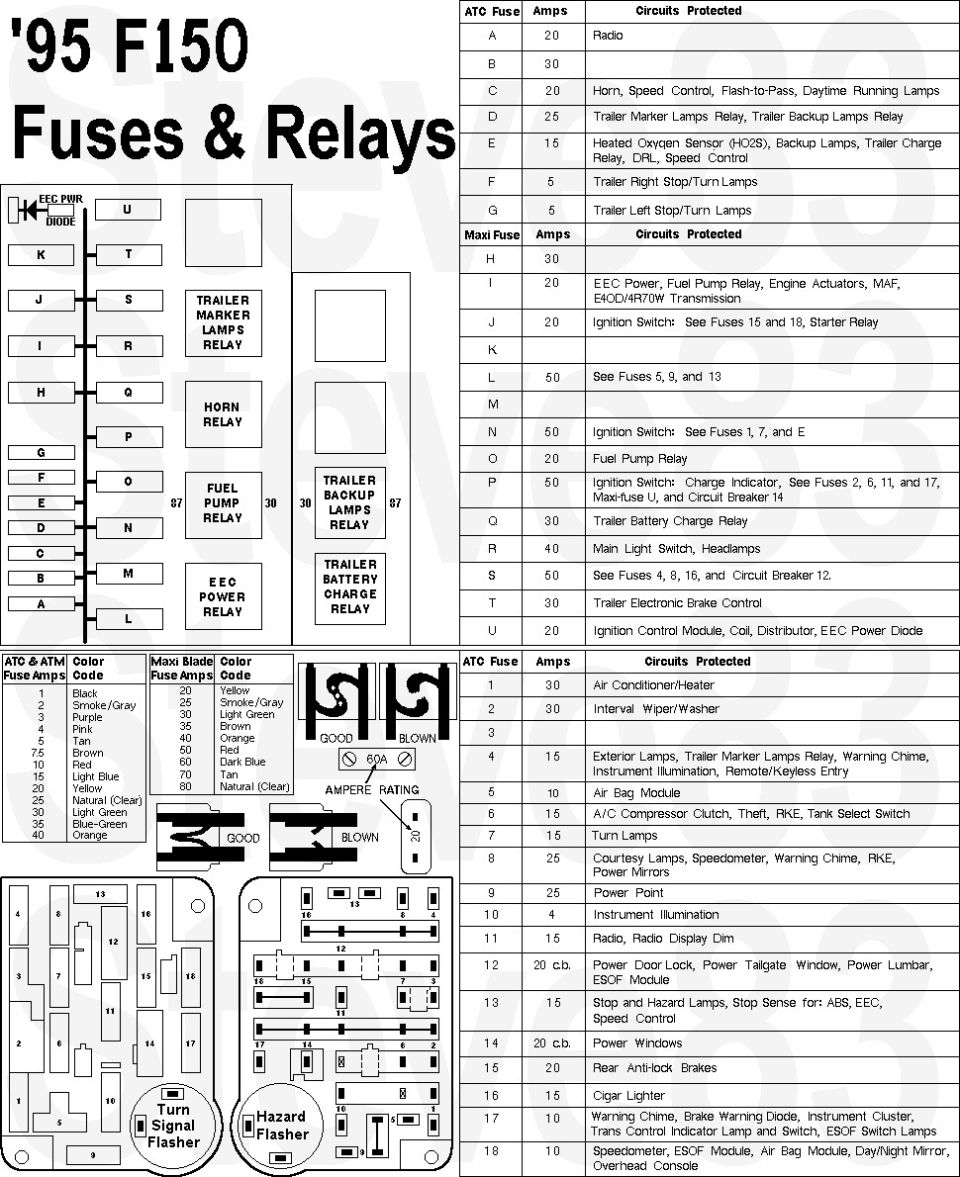

'95 F150 fuse and relay chart with fuse panel layout, ATC and Ma…

'95 F-series Fuses & Relays
IF THE IMAGE IS TOO SMALL, click it.

ERROR: Fuse B is not used, except in Lightning F150s it's a 15A for the fog lamp relay.

See also:
http://www.bbbind.com/free_tsb.html (E-mail required, but it doesn't have to be your real one. Switch to WIRING DIAGRAMS.)
. . . . . . . . . .
