1973-1979 Ford F100/F350 Styleside Bed RaceTrak Molding Retainer Diagram

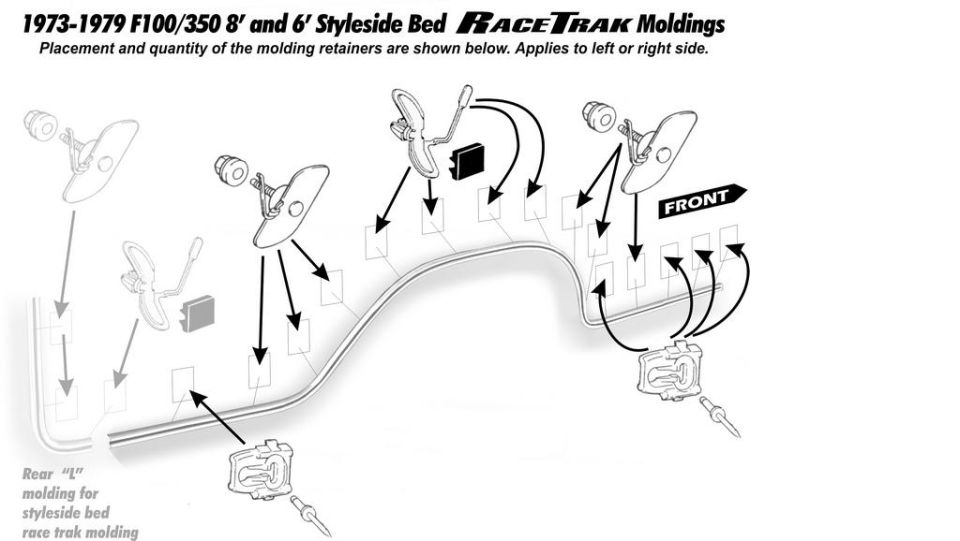

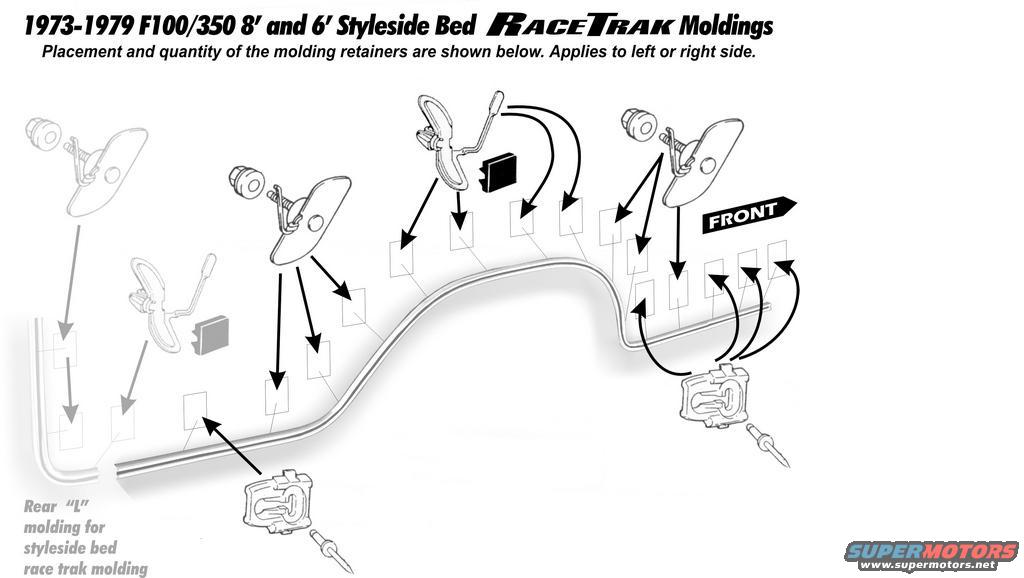

This document is an exploded parts placement diagram for RaceTrak side moldings on 1973-1979 Ford F100 through F350 pickups with 8-foot and 6-foot Styleside beds. The illustration shows the profile of the bed side with the molding trim line running along it, and depicts the placement and quantity of the molding retainers (clips, fasteners, and stud-type retainers) at each mounting point along the bed. Arrows connect each retainer type to the specific locations where it installs along the molding path, including positions near the wheel arch and toward the front of the bed (marked with a FRONT direction arrow). A grayed-out portion at the rear left is labeled as the rear "L" molding for the styleside bed race trak molding, showing its retainer positions separately. The diagram notes that the same layout applies to either the left or right side of the truck. A reader can learn which retainer style goes at each mounting location and how many retainers are needed to install or restore the RaceTrak body side molding on these trucks. No part numbers, torque specs, or textual legend beyond the header and rear-molding callout are included; the information is conveyed graphically.
