1973-79 Ford Truck F100/350 Fog Lamps & Related Parts Exploded Diagram - Page A

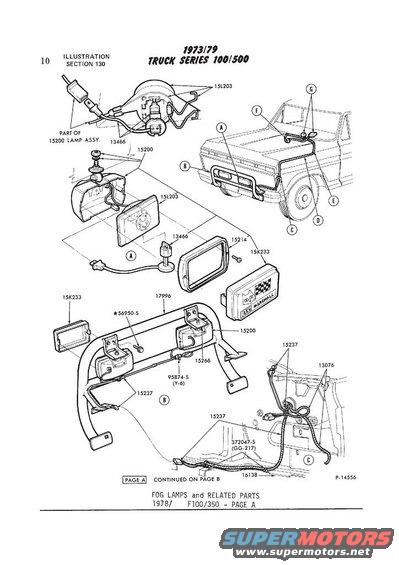

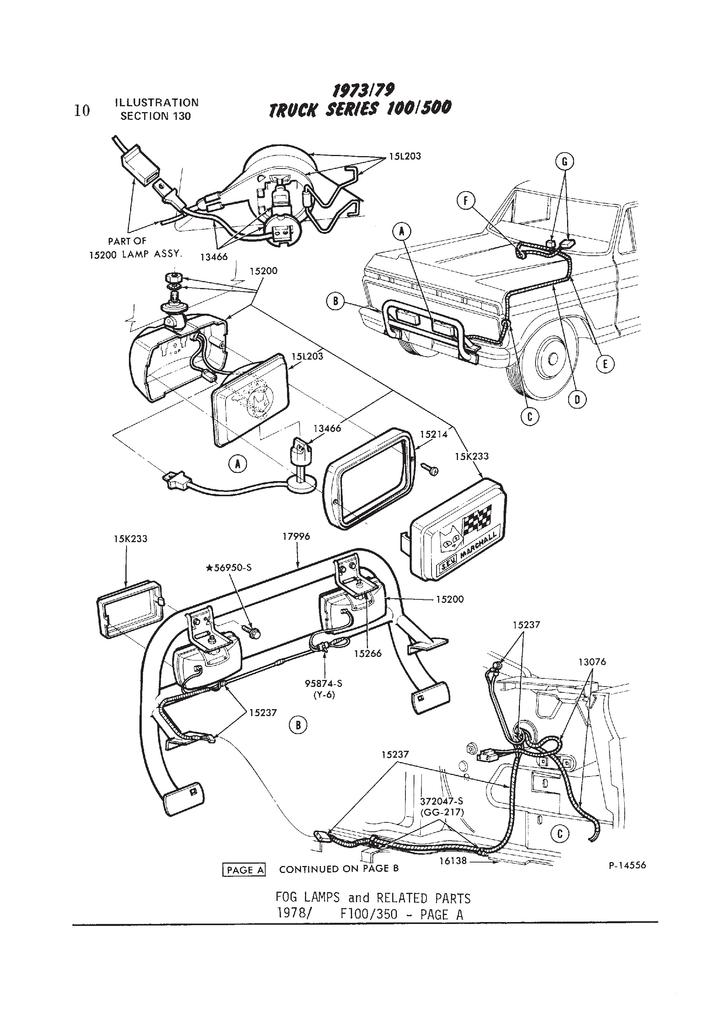

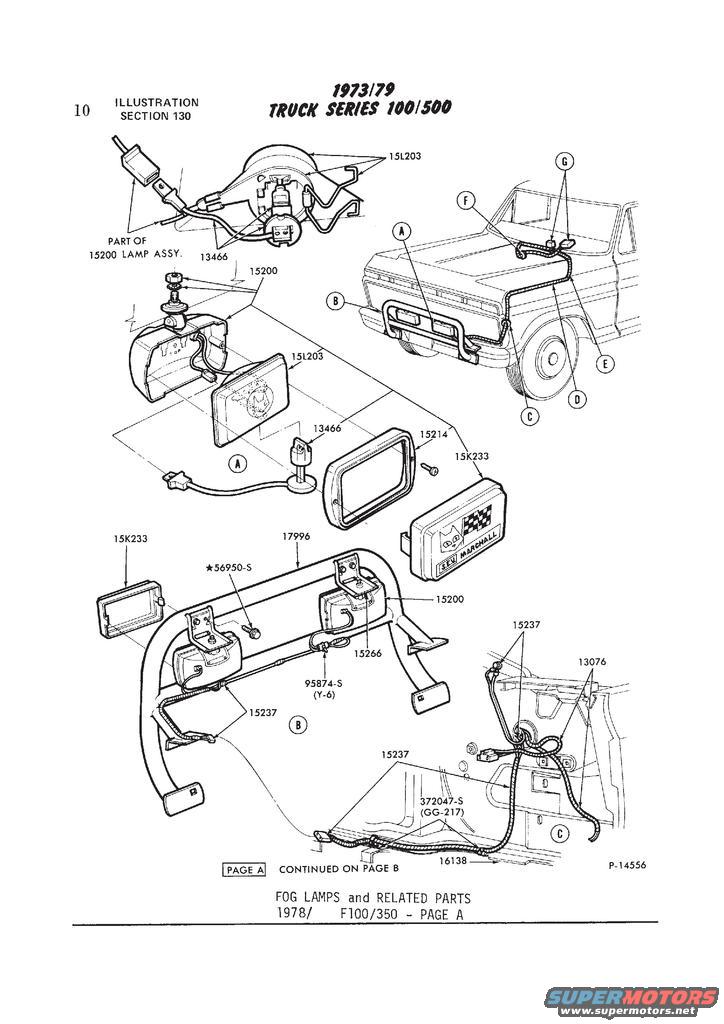

This is page A of a two-page exploded parts illustration from a Ford master parts catalog (Illustration Section 130, page 10) covering 1973–79 Truck Series 100/500. The drawing, plate number P-14556, is titled "Fog Lamps and Related Parts, 1978/ F100/350 – Page A," indicating applicability to 1978-and-later F100 through F350 trucks. It shows an exploded view of the fog lamp assembly (basic part number 15200) with its lens/housing components (15L203, 13466, 15214), the fog lamp cover (15K233), the mounting bar (17996), wiring assemblies (15237), a switch-area component (13076), grommet (16138), and hardware including screw 56950-S, fastener 95874-S (Y-6), and 372047-S (GG-217). A small perspective sketch of the truck front end uses circled letters A through G to key the detail views to their locations on the vehicle: the lamp on the bar, the harness routing along the fender and into the cab. The fog lamp lens carries a "Marshall" brand marking with a checkered-flag logo. The page notes it is continued on Page B, which is likely the other scan in this album. Readers can use this to identify Ford basic part numbers and hardware for dealer-installed fog lamps on late-1970s F-Series trucks.
