Ford NP435 4-Speed Transmission Exploded View Diagram - Shop Manual Page 21-14

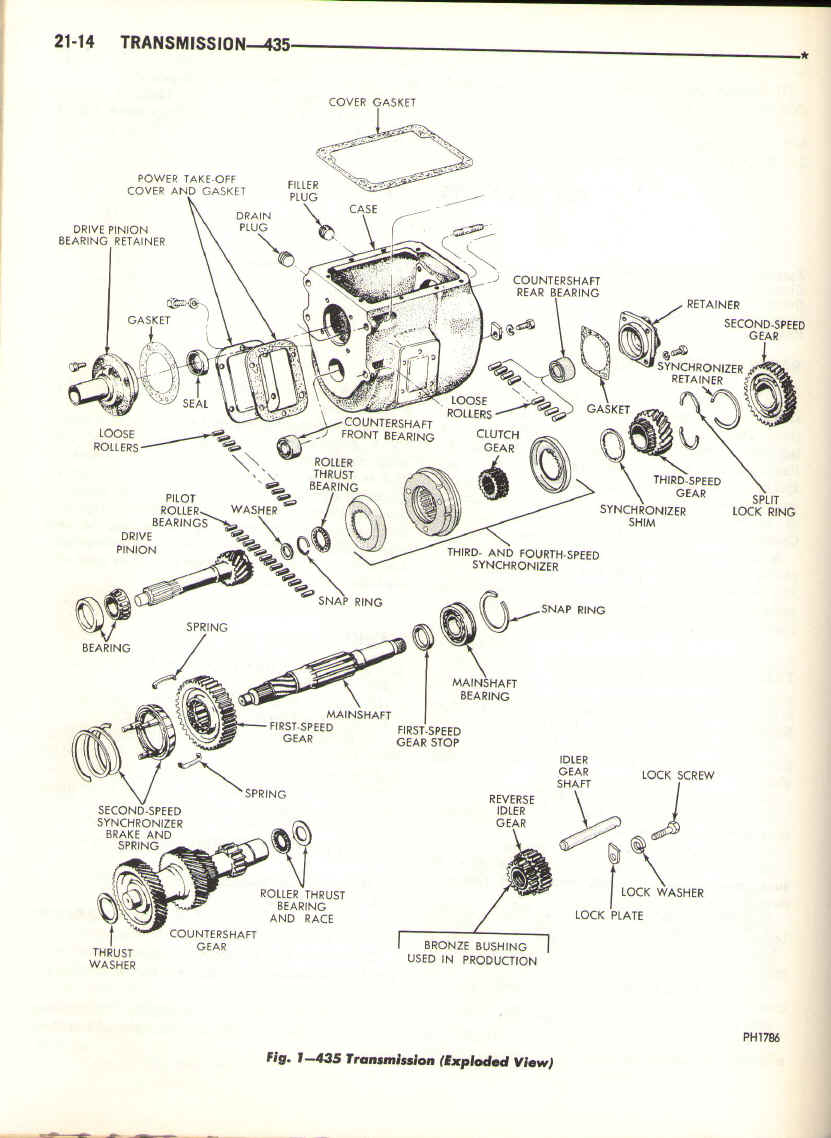

This document is a page (21-14) from a factory shop manual section titled "Transmission—435," showing Fig. 1—435 Transmission (Exploded View). It is a labeled exploded-parts diagram of the 435 four-speed manual transmission (commonly known as the New Process NP435). Every major internal and external component is called out, including the case, cover gasket, power take-off cover and gasket, filler and drain plugs, drive pinion and its bearing retainer, seal and gaskets, countershaft front and rear bearings with loose rollers, countershaft gear, clutch gear, roller thrust bearings, pilot roller bearings, mainshaft and mainshaft bearing, first-, second-, and third-speed gears, third- and fourth-speed synchronizer, synchronizer retainer and shim, second-speed synchronizer brake and spring, split lock ring, snap rings, springs, first-speed gear stop, reverse idler gear, idler gear shaft, lock screw, lock washer, lock plate, thrust washer, and a note that a bronze bushing was used in production for the reverse idler gear. The figure reference number PH1786 appears at the lower right. A reader can use this diagram to identify part names and the assembly order/relationship of components when disassembling or rebuilding the 435 transmission.
