What Ford trucks does this fog lamp parts diagram cover?

The page is from the 1973/79 Truck Series 100/500 catalog, and this specific page covers fog lamps and related parts for 1978/ F100/350 (Page B).

What is the Ford basic part number for the fog lamp relay?

The fog lamp relay is shown as part number 14512.

What part numbers make up the fog lamp switch assembly?

The fog lamp switch assembly view (G) shows the 15A214 switch, 18519 knob, 15A218 bracket, 14512 relay, screw 34653-S (M-106-XA), and wiring 15A211.

What part number is the fog lamp wire assembly?

The wire assembly is part number 14401, shown in views D and F, routed with loom/locator 15237 and clips 15A211.

What does the triangle symbol (▲) on this page mean?

The footnote states ▲ means 'REFER TO GROUP IN BODY SECTION' (shown next to part 04320).

Home/ Registry/ Ford/ F-150/ 1975-1979/ “Trusty Rusty”/ Photo supermotors.net/registry/media/1011852

1978-79 Ford F100-F350 Fog Lamp & Switch Parts Diagram - 1973/79 Truck Catalog

Ford 1973-79 Truck Series 100/500 fog lamp parts exploded illustration with part numbers

‹ ›

Ford parts illustration for 1973-79 truck fog lamps and related parts showing exploded components and part numbers.

AI caption February 2014 · Photo 333 of 446

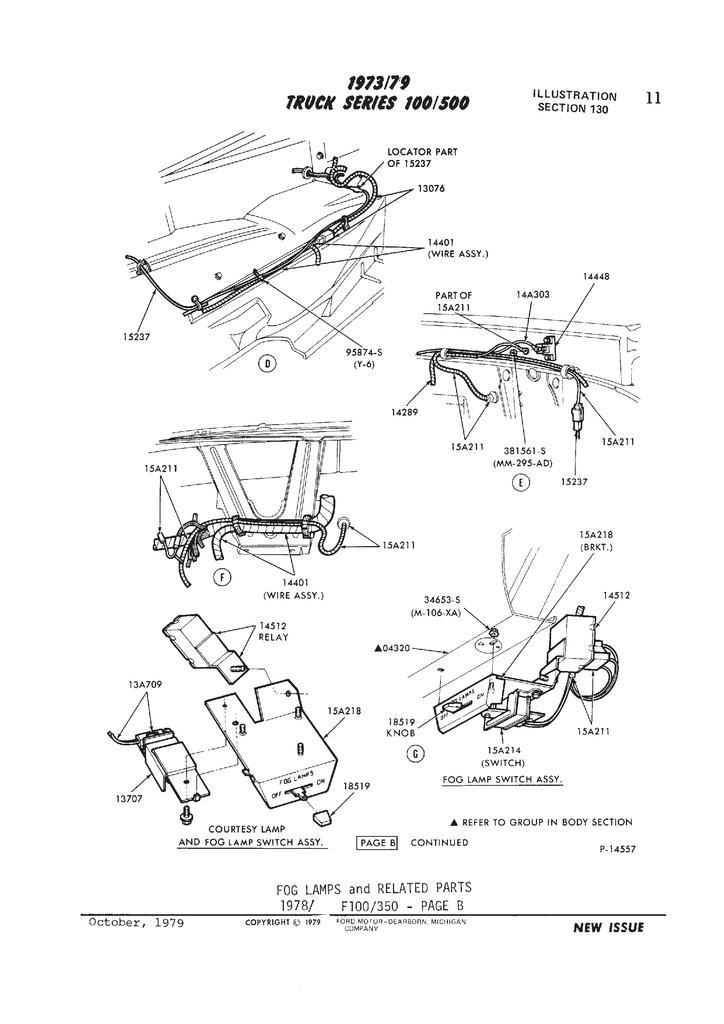

This is page 11 of Illustration Section 130 from the Ford Master Parts Catalog covering 1973–79 Truck Series 100/500. It is an exploded-parts illustration page titled "FOG LAMPS and RELATED PARTS, 1978/ F100/350 - PAGE B," dated October 1979 and marked "NEW ISSUE." The page contains several callout views (D, E, F, G) showing fog lamp wiring routing and switch mounting on 1978-up F100 through F350 trucks. Views D–F illustrate the fog lamp wire assemblies (14401), wiring loom (15237), harness components 13076, 14A303, 14448, 14289, and wiring clips 15A211, along with fasteners 95874-S (Y-6) and 381561-S (MM-295-AD). The lower views show the courtesy lamp and fog lamp switch assembly and the fog lamp switch assembly, including the 14512 relay, 13A709 and 13707 components, 15A218 bracket, 18519 knob, 15A214 switch, and screw 34653-S (M-106-XA). A triangle note (▲04320) refers the reader to the body section group. Illustration reference number P-14557. A reader can use this page to identify Ford basic part numbers and mounting locations for fog lamp wiring, relay, switch, bracket, and hardware on late-1970s Ford trucks.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What Ford trucks does this fog lamp parts diagram cover?: The page is from the 1973/79 Truck Series 100/500 catalog, and this specific page covers fog lamps and related parts for 1978/ F100/350 (Page B).
What is the Ford basic part number for the fog lamp relay?: The fog lamp relay is shown as part number 14512.
What part numbers make up the fog lamp switch assembly?: The fog lamp switch assembly view (G) shows the 15A214 switch, 18519 knob, 15A218 bracket, 14512 relay, screw 34653-S (M-106-XA), and wiring 15A211.
What part number is the fog lamp wire assembly?: The wire assembly is part number 14401, shown in views D and F, routed with loom/locator 15237 and clips 15A211.
What does the triangle symbol (▲) on this page mean?: The footnote states ▲ means 'REFER TO GROUP IN BODY SECTION' (shown next to part 04320).
