1983 Ford Bronco “That dirty old truck” photo
![AutoLamp & AutoDim Brights added to a '92-96 Bronco or F-series using a modified '90 Cougar control switch.
NON-STANDARD WIRING - DO NOT USE THIS DIAGRAM FOR DIAGNOSIS!!!
'80-91 trucks similar.
One diode in any of the indicated locations is sufficient.
[url=http://www.supermotors.net/registry/2742/84974-4][img]http://www.supermotors.net/getfile/1067160/thumbnail/intro01.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/907876][img]http://www.supermotors.net/getfile/907876/thumbnail/autolampsbrights.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/907878][img]http://www.supermotors.net/getfile/907878/thumbnail/autolampparts.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/907877][img]http://www.supermotors.net/getfile/907877/thumbnail/autodial.jpg[/img][/url]](https://www.supermotors.net/getfile/909720/fullsize/autolamp.jpg)

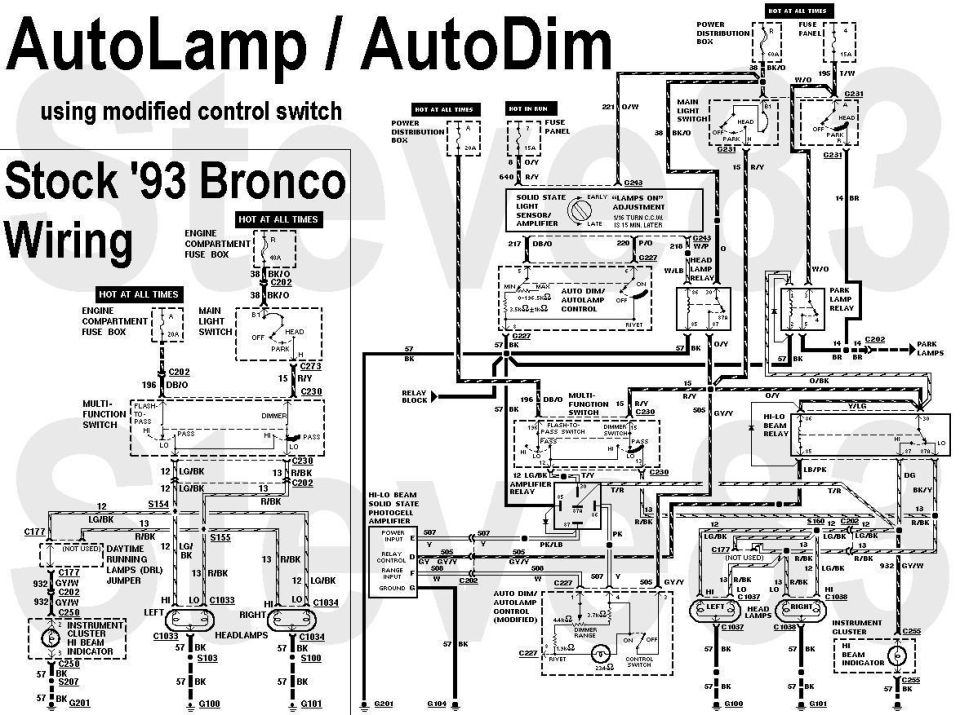

AutoLamp & AutoDim Brights added to a '92-96 Bronco or F-series using a modified '90 Cougar control switch.
NON-STANDARD WIRING - DO NOT USE THIS DIAGRAM FOR DIAGNOSIS!!!
'80-91 trucks similar.
One diode in any of the indicated locations is sufficient.
.
.
.
