Batteries, starter, winch, and inverter wiring schematic

‹ ›

Body Donor #2View all 243

Close-up of green wires and a connector marked with purple ink

Coiled green wire over a tape-wrapped vehicle wiring harness

Automotive ABS and electrical wiring schematic diagram

Wiring harness relay block with labeled relays

Labeled full body wiring harness laid out on carpet

Floor console and door wiring sub-harness laid out on concrete

Auxiliary battery continuous-duty ganged relays and cables

Mocha dash assembly removed from a 1996 F-150 XLT

Two gray automotive dashboard assemblies removed and laid on sand

Automotive wiring harness on carpet with labeled connectors, modules, and spare grounds.

243photos in this albumView all

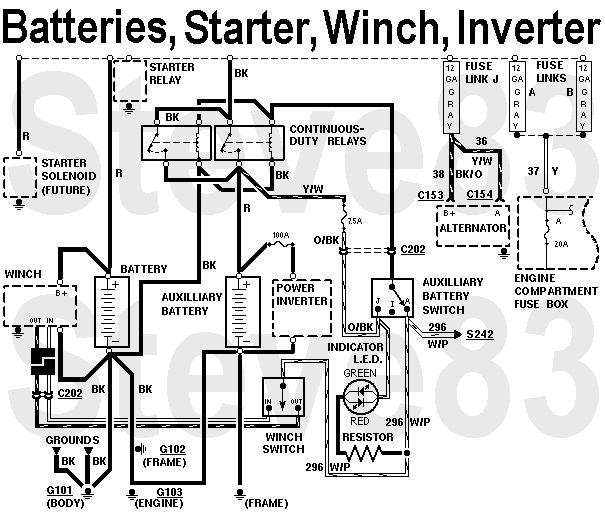

Dual battery circuit for winch & power inverter with parallel isolation relays and indicator LED.
NON-STANDARD WIRING - DO NOT USE THIS DIAGRAM FOR DIAGNOSIS!!!

The aux.batt. switch positions are: Automatic (normal, aux.batt. is charged when the engine is running & provides extra reserve minutes when key-on, engine off); Isolate (aux.batt. is not connected to the alternator or main batt.); Jump-start (main batt. dead/gone, aux.batt. always connected).

The 2-color LED can be RadioShack 276-0012 (2.8V 30mA) with resistor 271-012 (330 Ohm 1/8W). If it lights green, the aux.batt. is powering the truck; if it lights red, the aux.batt. is weak.
