Ford 289 V8 & 200 Six Clutch Z-Bar Linkage Exploded Parts Diagram (Pre 4-13-67)

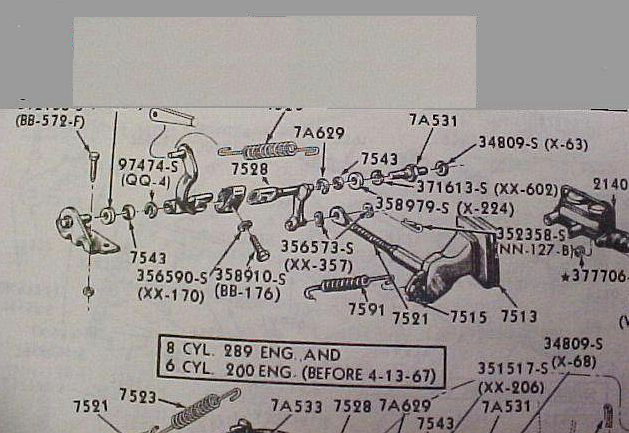

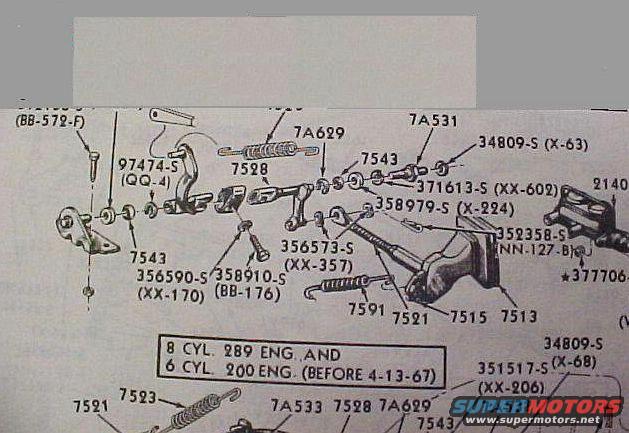

This document is a scanned page from a Ford parts catalog showing an exploded-view illustration of the clutch release equalizer bar (Z-bar) and related linkage components. A boxed caption identifies the assembly as applicable to the 8-cylinder 289 engine and the 6-cylinder 200 engine built before 4-13-67. The diagram calls out Ford part numbers for the equalizer bar and its attaching hardware, including 7513, 7515, 7521, 7528, 7543, 7591, 7A531, and 7A629, along with standard hardware part numbers such as 34809-S (X-63), 97474-S (QQ-4), 352358-S (NN-127-B), 356573-S (XX-357), 356590-S (XX-170), 358910-S (BB-176), 358979-S (X-224), and 371613-S (XX-602). A second, partially visible diagram at the bottom of the page shows additional callouts (7521, 7523, 7A533, 7528, 7A629, 7543, 7A531, 34809-S (X-68), 351517-S (XX-206)), likely for a related engine application. Readers can use this page to identify the correct part numbers for rebuilding or replacing the manual-transmission clutch Z-bar linkage on mid-1960s Fords with 289 V8 or 200 six-cylinder engines.
