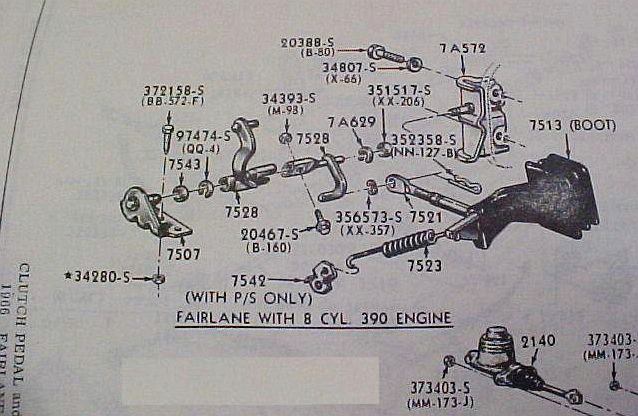

1966 Ford Fairlane 390 V8 Clutch Z-Bar Linkage Exploded Parts Diagram

Exploded clutch pedal and linkage diagram for Fairlane 390 engine with part numbers

‹ ›

Exploded parts diagram of the clutch pedal and linkage for a Fairlane with 390 engine, with Ford part numbers.

AI caption September 2012 · Photo 114 of 122

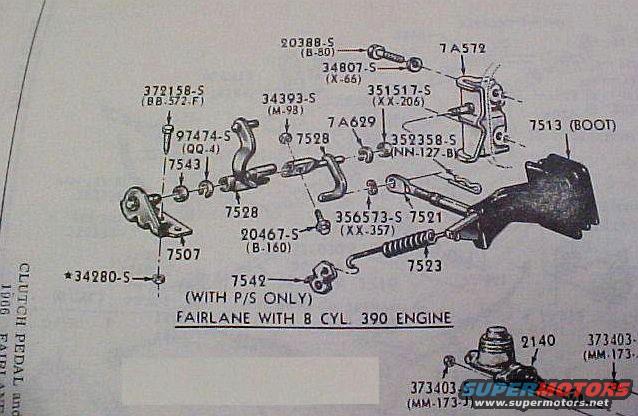

This document is a scanned page from a Ford parts reference showing an exploded parts diagram of the clutch pedal and Z-bar (equalizer/clutch release) linkage for the Fairlane equipped with the 8-cylinder 390 engine, as labeled directly on the drawing ('FAIRLANE WITH 8 CYL. 390 ENGINE'). Partially visible vertical margin text reads 'CLUTCH PEDAL' and appears to reference the 1966 Fairlane. The diagram identifies each component with Ford basic part numbers and hardware standard numbers, including the equalizer bar assembly (7A572), rubber boot (7513), bushings and levers (7528, 7543, 7507, 7521, 7523, 7A629), clutch rod (7542, noted 'WITH P/S ONLY' for power steering applications), and associated fasteners such as 20388-S (B-80), 34807-S (X-66), 372158-S (BB-572-F), 34393-S (M-98), 351517-S (XX-206), 352358-S (NN-127-B), 356573-S (XX-357), 97474-S (QQ-4), 20467-S (B-160), and 34280-S. A partial second illustration at the lower right shows part 2140 with fasteners 373403-S (MM-173-J). A reader can use this to identify and order correct clutch linkage components and hardware for a 390-equipped Fairlane.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What part number is the clutch equalizer (Z-bar) boot on a Fairlane with the 390 engine?: The boot is labeled 7513 (BOOT) in the exploded diagram.
Which clutch linkage part applies only to power steering cars?: Part 7542 is marked '(WITH P/S ONLY)' in the diagram.
What is the part number of the Z-bar/equalizer assembly itself?: The equalizer bar assembly is identified as 7A572.
What fastener hardware numbers are used in this clutch linkage?: The diagram calls out 20388-S (B-80), 34807-S (X-66), 372158-S (BB-572-F), 34393-S (M-98), 351517-S (XX-206), 352358-S (NN-127-B), 356573-S (XX-357), 97474-S (QQ-4), 20467-S (B-160), 34280-S, and 373403-S (MM-173-J).
Which engine application does this diagram cover?: It is labeled 'FAIRLANE WITH 8 CYL. 390 ENGINE'.
