1983 Ford Bronco “That dirty old truck” photo

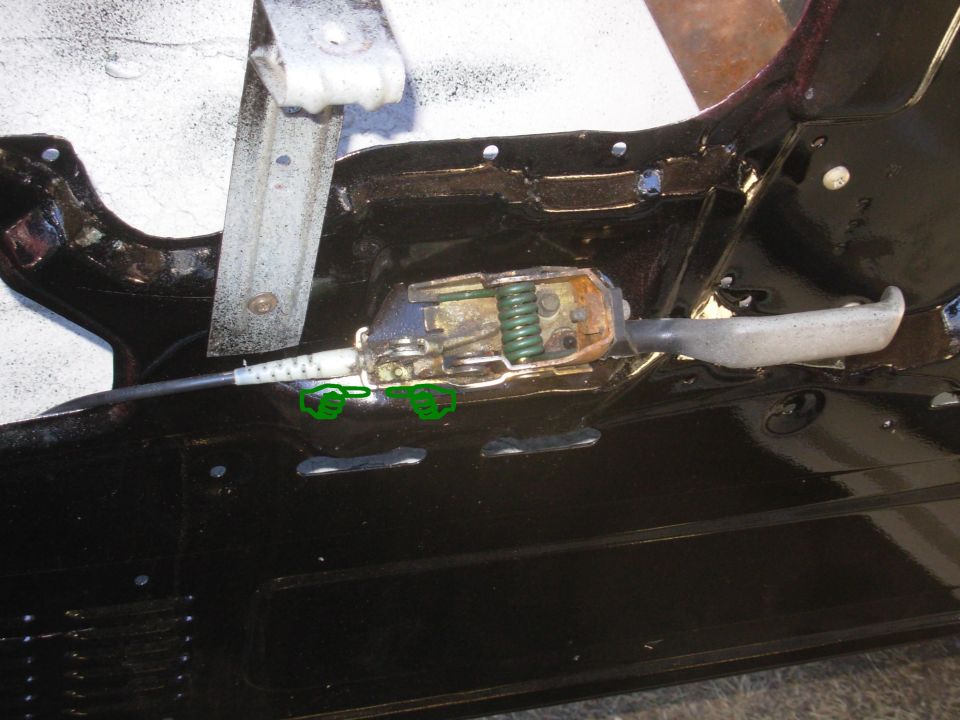

This shows why the '92-96 door pocket doesn't sit right in the door panel, and often cracks.

If the bracket warps at the point indicated, and the edges become misaligned, the rear tab will bend forward, and the cable sheath will rise under the armrest brace (vertical galvanized), pushing against the door pocket. Be sure these edges remain aligned as indicated in this TSB:

Owner caption · Photo 4882 of 5000
