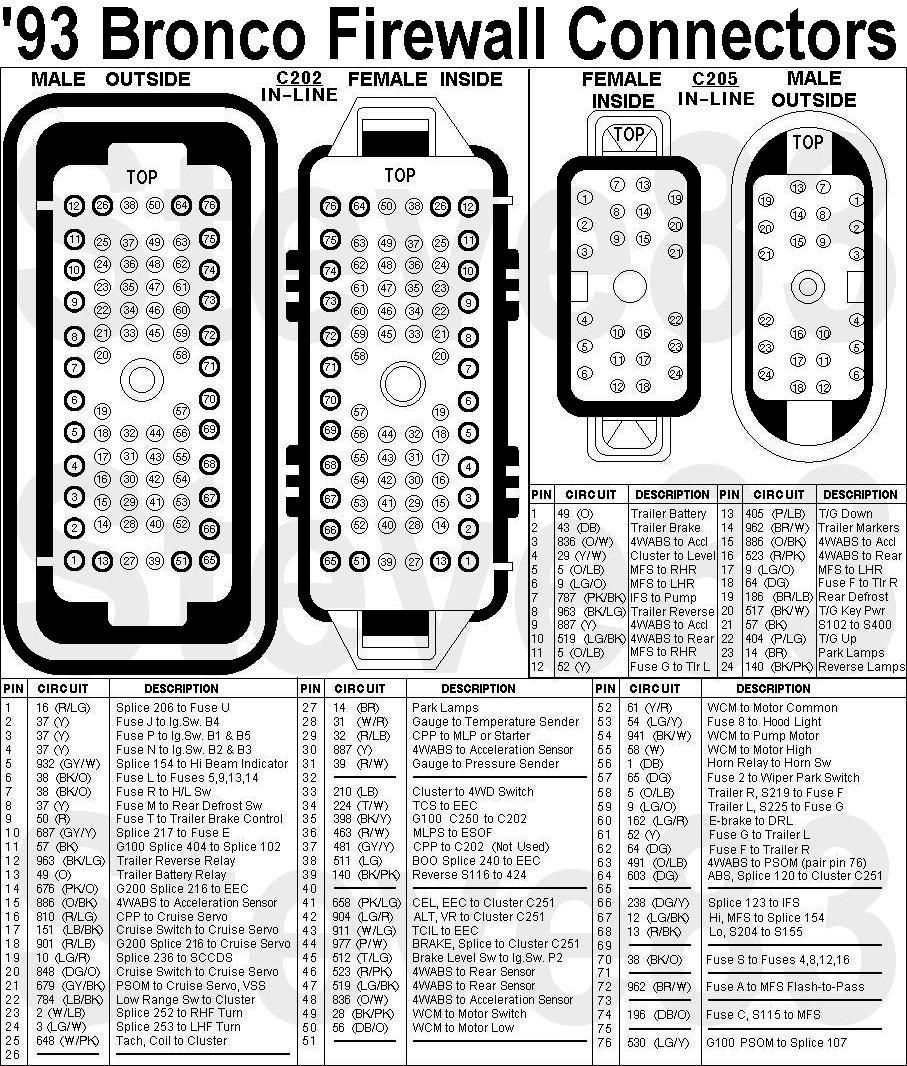

'93 Bronco Firewall Connectors C202 & C205
IF THE IMAGE IS TOO SMALL, click it.
'92-96 Bronco & F-series similar

This diagram has been confirmed from a '93 Bronco XLT wiring harness. Errors from the EVTM have been corrected. The pinouts are looking into the MATING FACES of the connectors; for the rear (harness) view, use the pinout numbers of the opposite gender.

. . .

For '79 & similar trucks, see:
http://www.supermotors.net/registry/24302/78593-2
