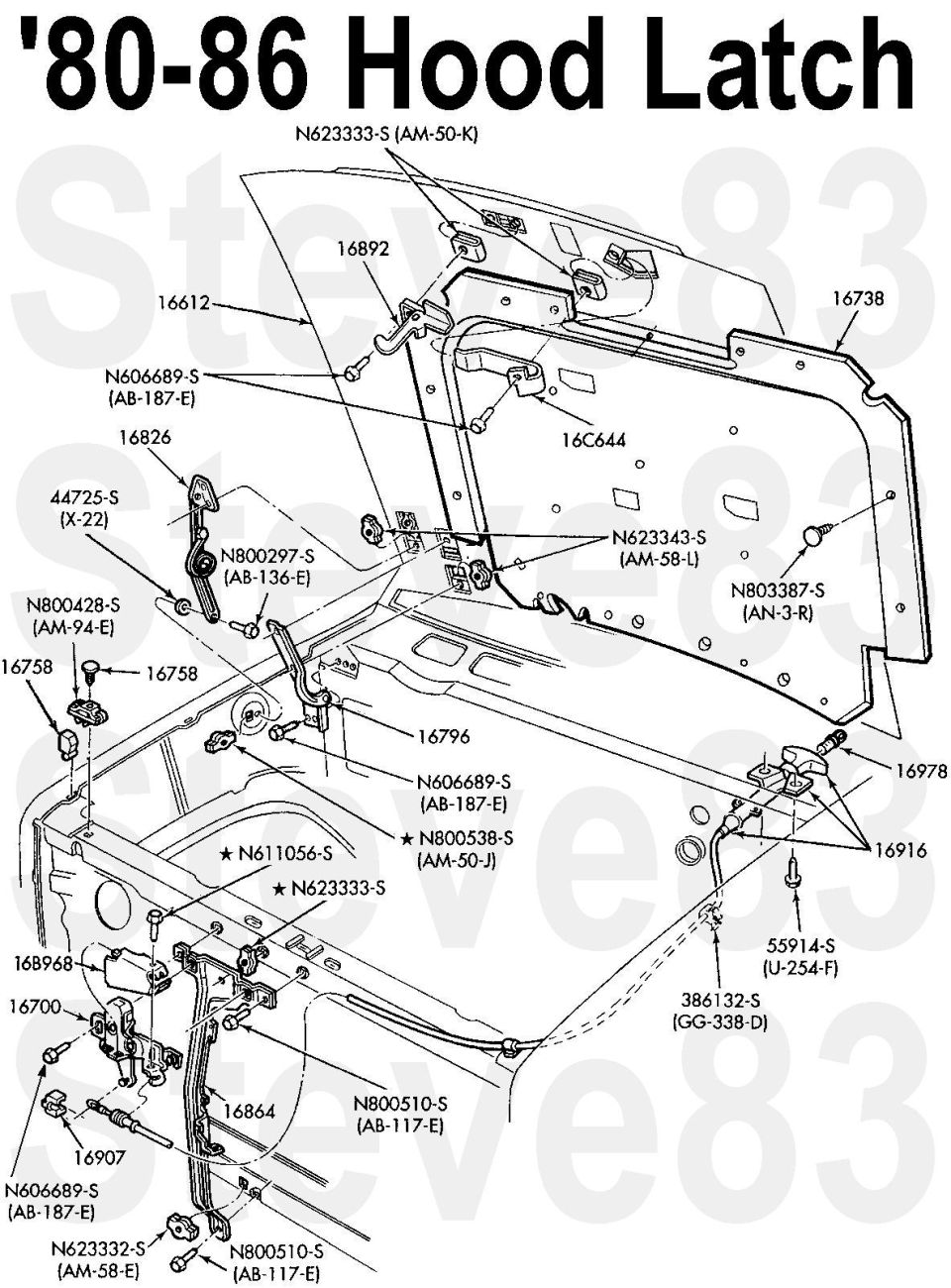

'80-86 Hood & Latch
IF THE IMAGE IS TOO SMALL, click it.

'87-96 similar

16612 - Hood assembly
16700 - Hood latch assembly
16738 - Sound absorbing panel (diesel only)
16758 - Hood pad
16796 - Hinge
16826 - Lift spring/hood support assembly
16864 - Hood latch mount
16892 - Safety catch assembly
16907 - Cable retainer clip
16916 - Hood release handle & cable assembly
16978 - Lock cylinder (RPO)
16B968 - Shield
16C644 - Latch spring
386132-S - Cable retainer
44725-S - Washer
55914-S - Screw
N606689-S - Bolt
N611056-S - Screw
N623332-S - U-nut
N623333-S - U-nut
N623343-S - U-nut
N800297-S - Bolt
N800428-S - Nut assembly
N800510-S - Bolt
N800538-S - U-nut
N803387-S - Pushpin, or Pushpin
