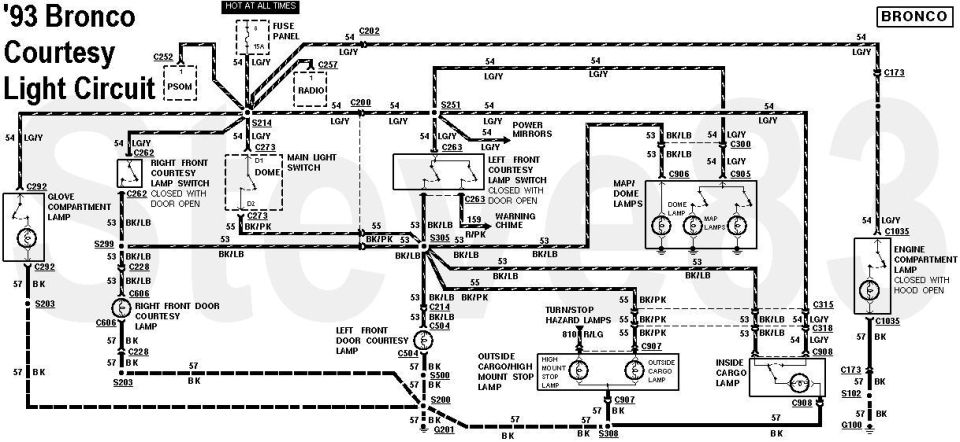

'93 Bronco Courtesy Light Circuit wiring diagram

'93 Bronco stock Courtesy Light Circuit
IF THE IMAGE IS TOO SMALL, click it.

Note that '92-93 Broncos' & F-series' left front courtesy switch is a rare plastic design (Standard DS838) located at the bottom of the B-pillar (instead of the metal design in the lower A-pillar for all other years '80-96/7). From '94-96/7, the driver's switch (Motorcraft SW6345) returned to the lower A-pillar, like the RIGHT switch always was.

Note that '92-93 Broncos' & F-series' left front courtesy switch is a rare plastic design (Standard DS838) located at the bottom of the B-pillar (instead of the metal design in the lower A-pillar for all other years '80-96/7).
