73 Owners Manual

From 1974 Ford Bronco, documented by Indybronco.

46 photos
← Back to this vehicle

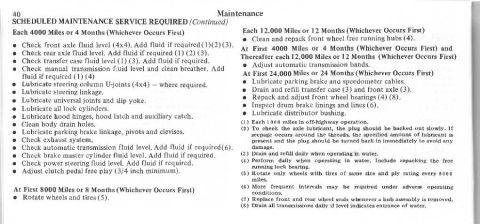

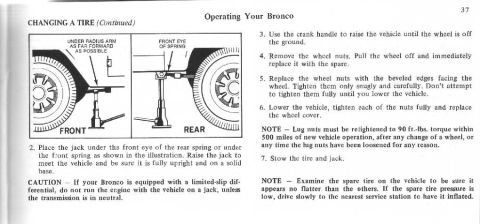

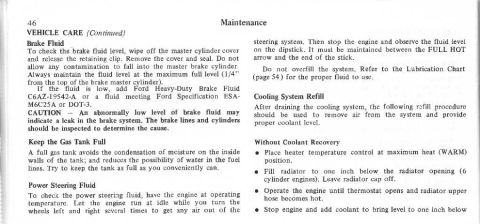

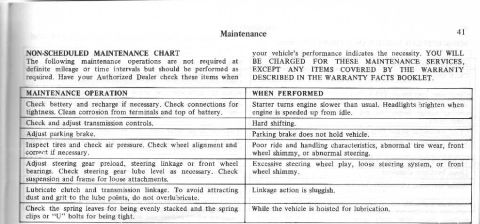

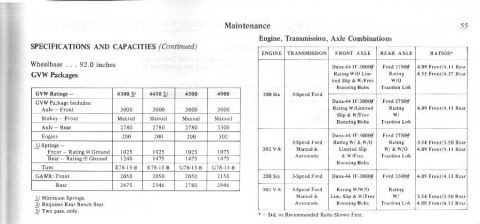

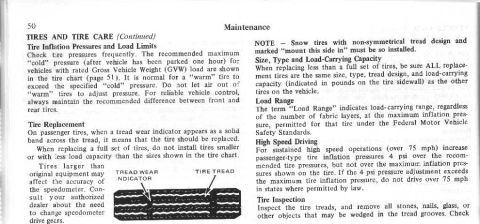

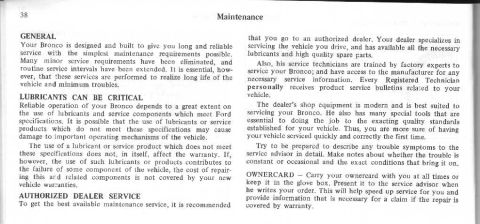

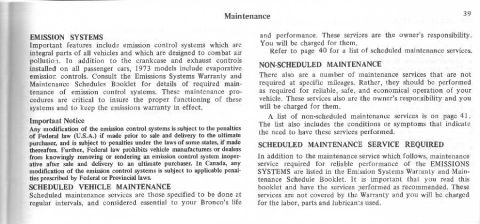

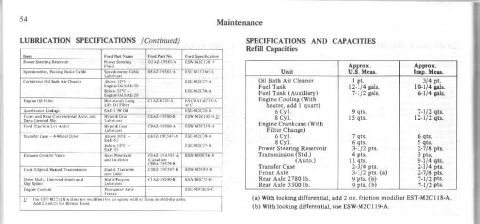

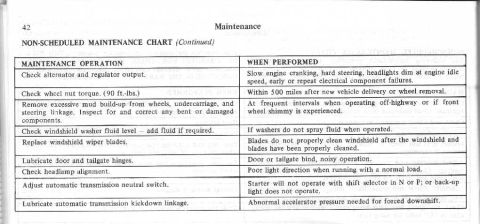

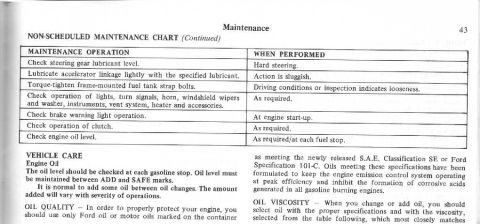

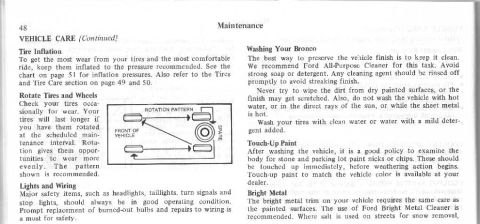

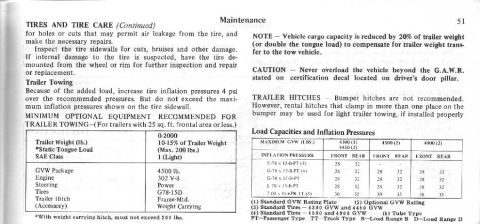

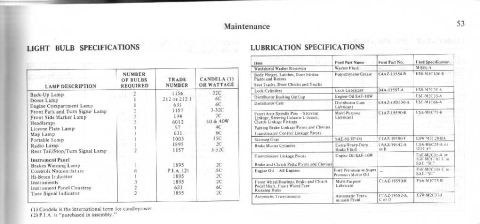

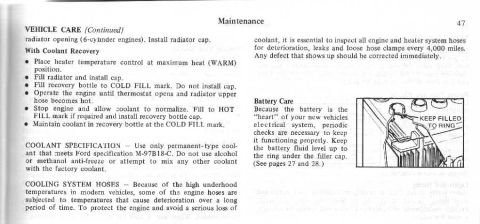

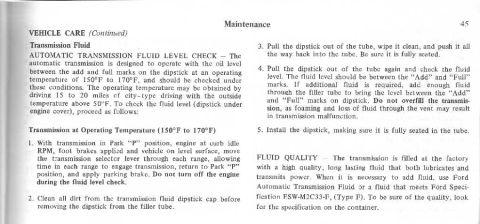

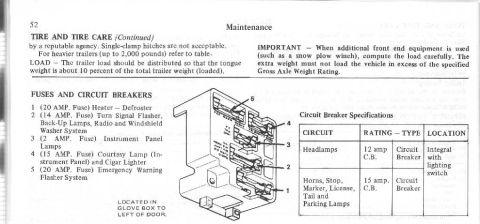

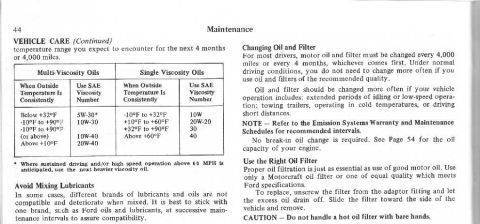

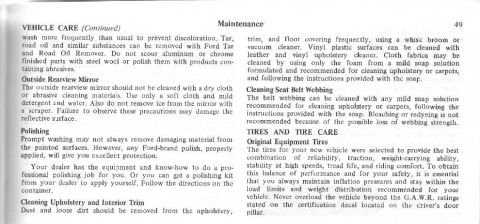

1974 Ford Bronco - Owner's manual page diagramming the instrument panel and controls with a numbered legend of gauges and switches. 1974 Ford Bronco - Ford Bronco owner's manual page: operating two-speed windshield wipers and washers, headlamps and parking lights, headlamp dimmer/beam sele… 1974 Ford Bronco - Page 14 of the Bronco owner's manual with fuel-saving driving tips, steady 35 to 50 mph speeds, and break-in advice for the first 1000 mile… 1974 Ford Bronco - Page 15 of the Bronco owner's manual covering the pull-to-release parking brake, manual transmission shifting and general downshifting inst… 1974 Ford Bronco - Page 16 of the Bronco owner's manual: 3/4 to 1-1/2 inch clutch pedal free travel, 2H/4H and 4L shift speed table, and automatic P, R, N, D… 1974 Ford Bronco - Page 17 of the Bronco owner's manual showing the P R N D 2 1 selector diagram, accelerator downshifts, and four-wheel drive transfer case u… 1974 Ford Bronco - Owner's manual page describing driving and manual/automatic four-wheel-drive transfer case shifting procedures. 1974 Ford Bronco - Page 19 of the Bronco owner's manual with the transfer case shift pattern, FREE/LOCK front hub dial illustration and turn signal lever oper… 1974 Ford Bronco - Page 20 of the Bronco owner's manual covering lane change signals, the horn, the pull-out hazard flasher switch illustration and self-adjus… 1974 Ford Bronco - Page 21 of the Bronco owner's manual on wet brakes, the BRAKE warning light and dual master cylinder, and steps for setting the parking bra… 1974 Ford Bronco - Page 22 of the Bronco owner's manual explaining the defroster, heat/fan and temperature control knobs with a PULL DEF, HEAT FAN, PULL TEMP… 1974 Ford Bronco - Page 23 of the Bronco owner's manual showing the optional AM radio controls, ash tray removal, glove box lock and liftgate opening steps. 1974 Ford Bronco - Owner's manual page covering tailgate operation and rear seat removal with an illustrated rear view of the vehicle. 1974 Ford Bronco - Owner's manual page covering hood opening steps, fuel tank refill capacities and recommended gasoline octane. 1974 Ford Bronco - Page 26 of the Bronco owner's manual on coolant fill with and without coolant recovery, -20°F freeze protection and Ford spec ESE-M97B18-C. 1974 Ford Bronco - Page 27 of the Bronco owner's manual with a radiator fill diagram with and without coolant recovery, oil dipstick checks and battery care. 1974 Ford Bronco - Page 28 of the Bronco owner's manual covering battery specific gravity, the windshield washer reservoir, and the start of trouble diagnosis. 1974 Ford Bronco - Page 29 of the Bronco owner's manual on trouble diagnosis: engine cranks but won't start, causes of overheating, and brakes that do not fun… 1974 Ford Bronco - Ford Bronco owner's manual trouble-diagnosis page: hard/wandering steering causes, blown fuses indicating shorts, bulb burnout, flashing he… 1974 Ford Bronco - Page 31 of the Bronco owner's manual with cold weather starting and warm-up advice, frost removal and an introduction to trailer towing. 1974 Ford Bronco - Page 32 of the Bronco owner's manual on trailer brakes over 2,000 lbs, safety chains, towing practice tips and the start of emergency proce… 1974 Ford Bronco - Page 33 of the Bronco owner's manual covering a flooded engine, push starting a standard transmission and jumper cable battery warnings. 1974 Ford Bronco - Page 34 of the Bronco owner's manual with the 24-volt jumper system caution and towing on all four wheels, backward or forward. 1974 Ford Bronco - Page 35 of the Bronco owner's manual with tire changing steps and an illustration of the jack and tools stowed under the hood on the left f… 1974 Ford Bronco - Owner's manual page illustrating spare wheel storage options including swing-away carrier and body-panel mounting. 1974 Ford Bronco - Owner's manual page showing front and rear jack placement figures with step-by-step tire-changing instructions. 1974 Ford Bronco - Page 38 of the Bronco owner's manual on general maintenance, why lubricants meeting Ford specifications matter, dealer service and the owne… 1974 Ford Bronco - Page 39 of the Bronco owner's manual covering emission control systems, the federal tampering notice, and scheduled and non-scheduled maint… 1974 Ford Bronco - Page 40 of the Bronco owner's manual listing scheduled maintenance at 4000, 8000, 12,000 and 24,000 miles, with numbered footnotes. 1974 Ford Bronco - Owner's manual page 41 non-scheduled maintenance chart: battery, transmission controls, parking brake, tires, alignment, steering gear and… 1974 Ford Bronco - Non-scheduled maintenance chart continued: alternator output, wheel nut torque (90 ft.-lbs.) within 500 miles, wipers, headlamp aim and neu… 1974 Ford Bronco - Page 43 maintenance chart covering steering gear lube, fuel tank strap bolts and clutch, plus engine oil level and Ford Specification 101-C… 1974 Ford Bronco - Multi- and single-viscosity SAE oil chart by outside temperature, with oil and filter changes every 4,000 miles or 4 months and oil filter… 1974 Ford Bronco - Five-step automatic transmission fluid level check at 150°F to 170°F operating temperature, with fluid quality notes on Ford spec fluid. 1974 Ford Bronco - Brake fluid check with Ford C6AZ-19542-A or ESA-M6C25A/DOT-3 fluid, power steering fluid level, and cooling system refill without coolant r… 1974 Ford Bronco - Coolant refill with recovery bottle, Ford specification M-97B18-C coolant, hose checks every 4,000 miles and battery care with Keep Filled… 1974 Ford Bronco - Vehicle care page covering tire inflation, rotation pattern diagram including spare, lights and wiring, washing your Bronco, touch-up paint… 1974 Ford Bronco - Ford owner's manual maintenance page: exterior care, outside rearview mirror cleaning, polishing, cleaning upholstery, seat belt webbing an… 1974 Ford Bronco - Tire care page on cold inflation pressures, replacement and load range, high speed driving over 75 mph, with a tread wear indicator illustr… 1974 Ford Bronco - Trailer towing guidance with 4500 lb. GVW, 302 V-8, G78-15B tire package, trailer hitch notes and a load capacity and inflation pressure ta… 1974 Ford Bronco - Ford Bronco fuses and circuit breakers chart: 20A heater/defroster, 14A turn signal/back-up/radio/washer, 2A instrument lamps, 15A courtesy… 1974 Ford Bronco - Light bulb chart listing lamp, bulb count, trade number and candela, beside lubrication specifications with Ford part numbers and specs. 1974 Ford Bronco - Lubrication specs continued, plus refill capacities: fuel tank 12-1/4 gals., 6 and 8 cyl. cooling and crankcase, transmission, transfer cas… 1974 Ford Bronco - Specifications with 92.0 inch wheelbase, 4300 to 4900 GVW packages, and 200 Six and 302 V-8 axle combinations with Dana 44 front and Ford r… 1974 Ford Bronco - Dealer-installed accessories for the Bronco: overload air springs, air horns, cigar lighter, compass, fire extinguisher, mirrors and snow p… 1974 Ford Bronco - Manual page illustration identifying the instrument cluster gauges and indicator lights including ammeter, fuel, temperature, oil pressure,…
