'87-91 front anti-sway bar exploded parts diagram with brackets,…

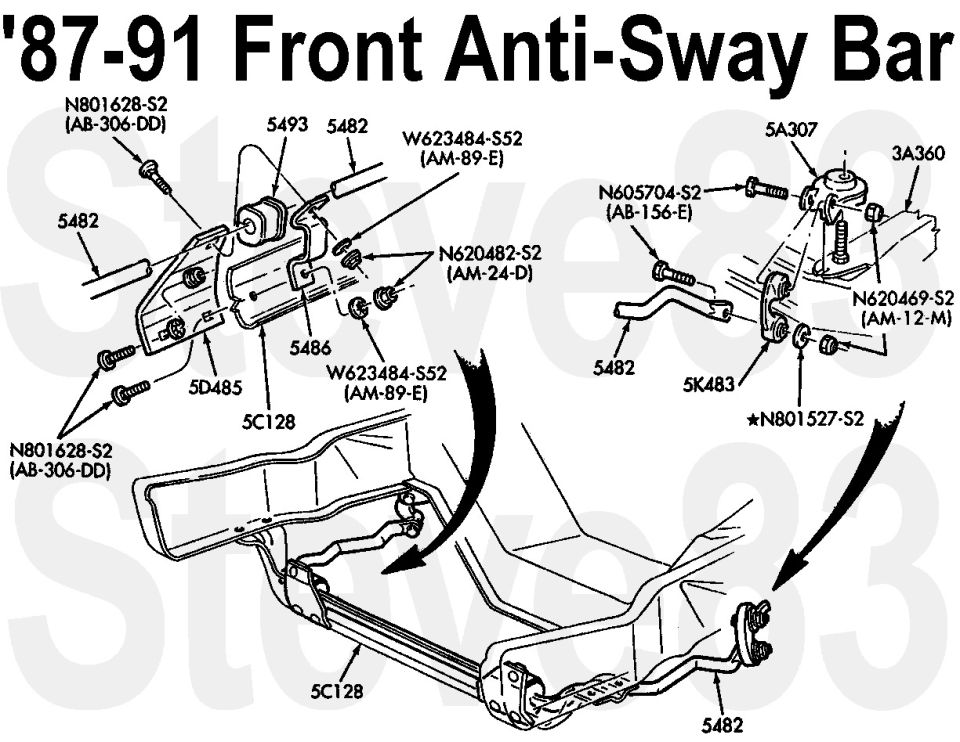

'87-91 front anti-sway bar exploded parts diagram with brackets, links and Ford part numbers
'87-91 front anti-sway bar exploded parts diagram with brackets, links and Ford part numbersOriginal file
'87-91 front anti-sway bar exploded parts diagram with brackets, links and Ford part numbers

Reference · 1980-1986 BroncoAll 61 exploded parts diagrams

1992-1996 Ford Brake Line Hardware Diagram - LWB/SWB Fittings & Part Numbers '84-91 clutch master cylinder exploded parts and cutaway with labeled seals, piston and reservoir '78-86 300ci I6 air cleaner exploded parts diagram with ducting and hardware part numbers '87-91 front anti-sway bar exploded parts diagram with brackets, links and Ford part numbers '80-86 2WD front anti-sway bar exploded parts diagram with snowplow option and 4WD/2WD insets '87-97 battery tray details with Super Cool R.H. and L.H. brackets and diesel-only left tray '87-96 exhaust systems exploded diagram for 5.0L/5.8L and 4.9L with part numbers and torque specs Transmission crossmembers exploded diagram for C6, AOD, T-18, M50D and E40D with part numbers and torque 61exploded parts diagrams1980-1986 Ford Bronco More reference 1996 Ford Bronco & F-Series Trailer Wiring Diagram - 7-Pin Connector PinoutWiring diagram Ford accessories catalog page with cellular mobile telephone and 40-channel CB emergency radioBrochure Ford door certification label dated 11/95 with GVWR 6300LB, P235/75R15XL tires and VIN 1FMEU15H4TLA76236Spec plate 1992 Ford E4OD Transmission Fault Code Diagnosis Chart - DTC List & SymptomsService procedure Smallblock V8 Coolant Flow Diagram - Ford Engine Cooling Path SchematicSchematic 1996 Ford Bronco/F-Series Starting System - Section 03-06 ContentsManual page Trim panel hole layout photos for positions A, B and C with tape measure readings from the body lineBlueprint Ford 1996 5.8L vehicle information decal with vacuum hose routing diagram and ASF-32P plugVacuum routing SAE and metric bolt torque specification chart by grade in lb-ft and N-mTorque spec '95 F150 fuse and relay chart with fuse panel layout, ATC and Maxi fuse amp tablesFuse chart

'87-91 Front Anti-Sway Bar

End link bolt N605704S439 or N605704S2

. . . . .

Part of 1980-1986 Ford Bronco Exploded Parts Diagrams
