Connector pin table for pins 91-104 with circuit numbers, wire c…

Connector pin table for pins 91-104 with circuit numbers, wire colors and functions
Connector pin table for pins 91-104 with circuit numbers, wire colors and functionsOriginal file
Connector pin table for pins 91-104 with circuit numbers, wire colors and functions

Reference · 1987-1991 F-250All 32 wiring diagrams

Ford C115 Connector Pinout - PCM/EEC 42-Pin Wiring Functions Diagram Ford C115 In-Line Connector Pinout - 42-Pin C115F/C115M Circuit & Wire Colors Connector pin table for pins 91-104 with circuit numbers, wire colors and functions Ford PCM Connector C202 Pinout Diagram - Pins 1-34 Wire Colors & Functions Ford C116 In-Line Connector Pinout - 38-Pin Wiring Diagram (C116F & C116M) Ford C115 In-Line Connector Pinout - 42-Pin C115F & C115M Wire Circuit Chart Ford PCM Wiring Diagram: 4R70W Trans Controls, CMP Sensor, MIL/TCIL Circuits Ford F-250 PCM Wiring Diagram - HO2S, ECT, TP & EVP Sensor Circuits (E6) 32wiring diagrams1987-1991 Ford F-250 More reference EPC relief valve install steps with drilled bottom plate, purple spring, valve and bracketService procedure TransGo AODE-HD2 Reprogramming Kit instruction cover for 1992-2011 AODE, 4R70/75W and 4R70/75EBrochure Ford certification label dated 06/93, type truck, VIN beginning 1FTCR11X, with GAWR and tire dataSpec plate 1992 Ford Bronco complete underbody frame dimensions, top and side views with measuring pointsBlueprint F150 1980-2003 catalog diagram P28018 of A/C condenser and hoses for the 5.8L 8-cylinder, 1990 to 1993Schematic Ford 5.8L Vacuum Hose Routing Diagram - Emissions Decal MFM05.8BSA6Vacuum routing

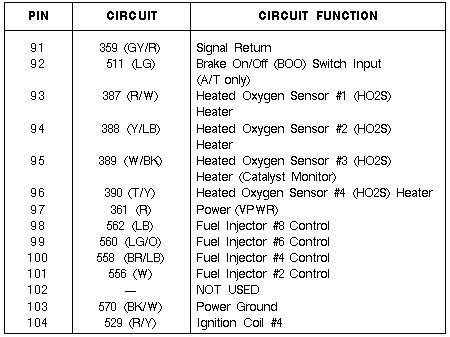

Pin table for pins 91-104 listing circuits such as 387 (R/W) HO2S #1 heater, 562 (LB) injector #8 and 529 (R/Y) ignition coil #4.

Part of 1987-1991 Ford F-250 Wiring Diagrams

AI caption · Photo 79 of 326

Pm cchulY cchulY ruucnou a) 35a (GV/R) Swgna Return a2 50 (LG) Brake On/Ow (BOO) swnm anA (m uny) as 357 (RM) Heaed Oxygen Sensur m (H025) Heaer a4 388 (V/LB) Heaed Oxygen Sensur 2 (H025) Heaer a5 35a (wave Heaed Oxygen Sensur a (H025) Heaer (Caays Manna as aan (rm Heaed Oxygen Sensur m (H025) Heaer a7 3m (R) Fewerwpwm as 552 (L3) Fue medur ma Cumm aa 55:: (LG/O) Fue medur ms Cumm mm 555 (ER/LE) Fue master on Cumm m 556 (W) Fue master 2 Cumm m2 7 NOT USED ms 57:: (BK/W) Fewer Gmund m4 52a (WV) gnmun Can an
