Holmes Hobbies HV500 Servo Box Label - Specs, Torque, Speed & Voltage
Reference · 1987-1991 BroncoAll 65 data & spec plates
Holmes Hobbies HV500 servo retail-case spec label: 6.0-8.4V, dead band 2us, up to 500 oz-in stall torque at 8.4V, 0.11s/60deg speed, 41x20x40mm, 73g.
Part of 1987-1991 Ford Bronco Data & Spec Plates

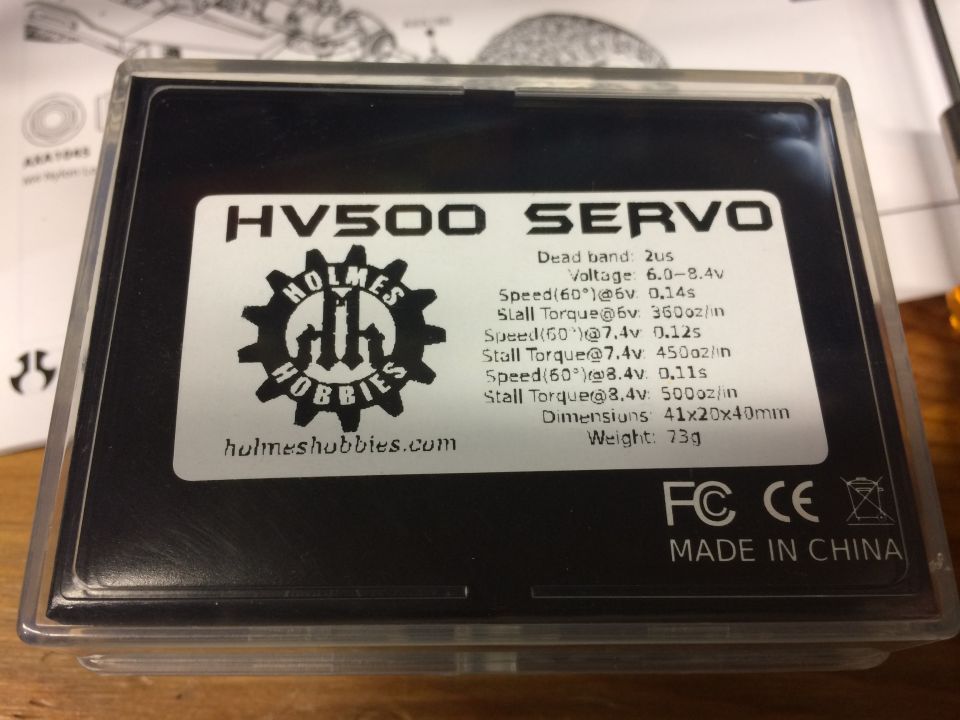

This image shows the specification label on the retail box of a Holmes Hobbies HV500 servo. The label lists the servo's key performance specifications: a dead band of 2 microseconds, an operating voltage range of 6.0-8.4 volts, and speed/torque figures at three voltages, 0.14s per 60° with 360 oz/in stall torque at 6v, 0.12s with 450 oz/in at 7.4v, and 0.11s with 500 oz/in at 8.4v. Physical specs are given as 41x20x40mm dimensions and 73g weight. The label carries the Holmes Hobbies gear logo and website (holmeshobbies.com), FCC and CE compliance marks, a WEEE (crossed-out bin) symbol, and a 'MADE IN CHINA' marking. A reader can learn the servo's voltage-dependent speed and stall torque ratings, its size and weight, and where it was manufactured. Note that this is a hobby/RC servo product label rather than a Ford Bronco vehicle document; it contains no vehicle-specific applicability information such as model years, engines, or wiring data.
Is this accurate? Sign in to help verify it.
Frequently asked questions
- What is the voltage range of the Holmes Hobbies HV500 servo?
- The label states an operating voltage of 6.0-8.4v.
- What is the stall torque of the HV500 servo?
- 360 oz/in at 6v, 450 oz/in at 7.4v, and 500 oz/in at 8.4v.
- How fast is the HV500 servo?
- Speed per 60° is 0.14s at 6v, 0.12s at 7.4v, and 0.11s at 8.4v.
- What are the dimensions and weight of the HV500 servo?
- Dimensions are 41x20x40mm and it weighs 73g.
- What is the dead band of the HV500 servo?
- The dead band is listed as 2us (microseconds).
