Schematic diagram of a 1976 Lincoln Mark IV hydroboost conversio…

Schematic diagram of a 1976 Lincoln Mark IV hydroboost conversion.
Schematic diagram of a 1976 Lincoln Mark IV hydroboost conversion.Original file
Schematic diagram of a 1976 Lincoln Mark IV hydroboost conversion.

Hydroboost ConversionView all 38

Hydroboost brake booster assembly on a workbench with tools Two metal rods with rounded ends on a wooden surface. One rod is shorter than the other Engine bay with dual horns and Edelbrock carburetor Hydroboost brake booster and master cylinder assembly with brake lines and wiring engine bay shot showing master cylinder and brake booster assembly Hydroboost conversion linkage with a clevis pin and spring mechanism Black hydroboost conversion part with silver fittings and hose clamp Engine bay view showing brake fluid reservoir, master cylinder, and hydraulic lines Engine bay showing brake master cylinder, hydroboost unit, and various hoses and wires Engine bay with radiator, hoses, and power steering pump Motorcraft FL-1A oil filter and engine hoses Photo of service manual page on Hydro-Boost removal with figure and handwritten measurements AN thread size chart with fitting profiles and tube O.D. to SAE thread table Male AN/JIC thread diagrams for -3 to -20 with fitting and tube size chart Technical document on performance plumbing and AN fitting sizes. Schematic diagram of a 1976 Lincoln Mark IV hydroboost conversion. 38photos in this albumView all

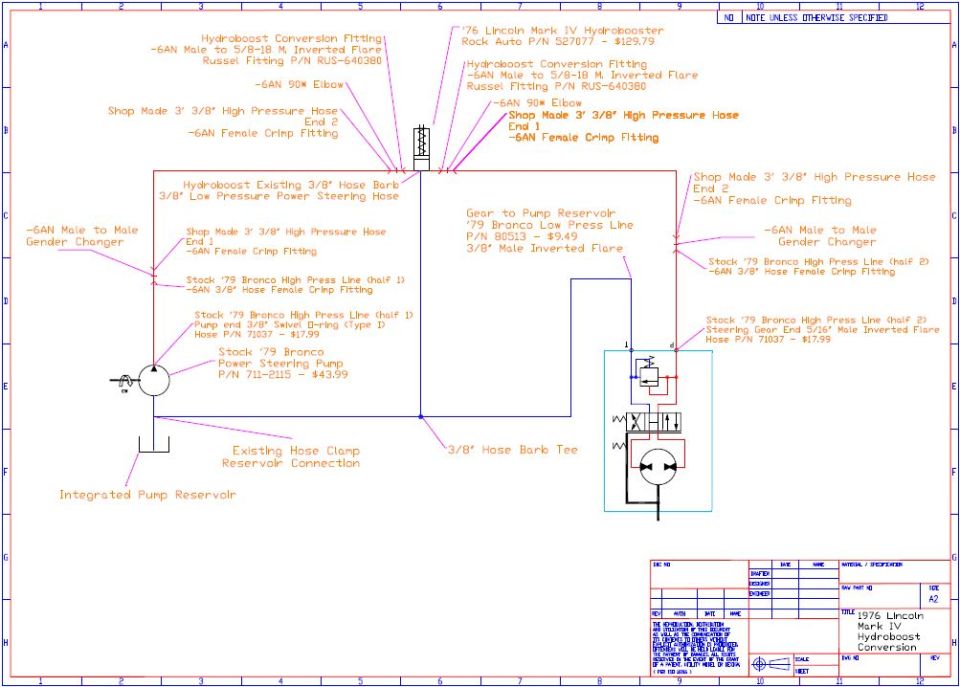

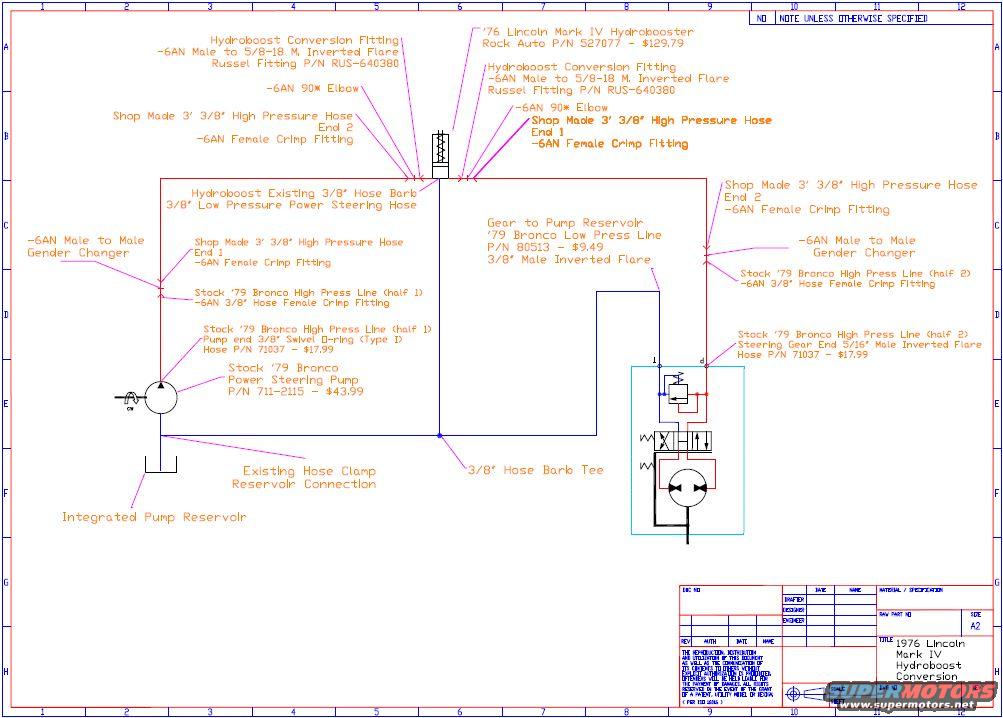

This is a schematic diagram illustrating the hydroboost conversion for a 1976 Lincoln Mark IV, detailing the routing of various hoses, fittings, and components including the power steering pump and hydroboost unit.
