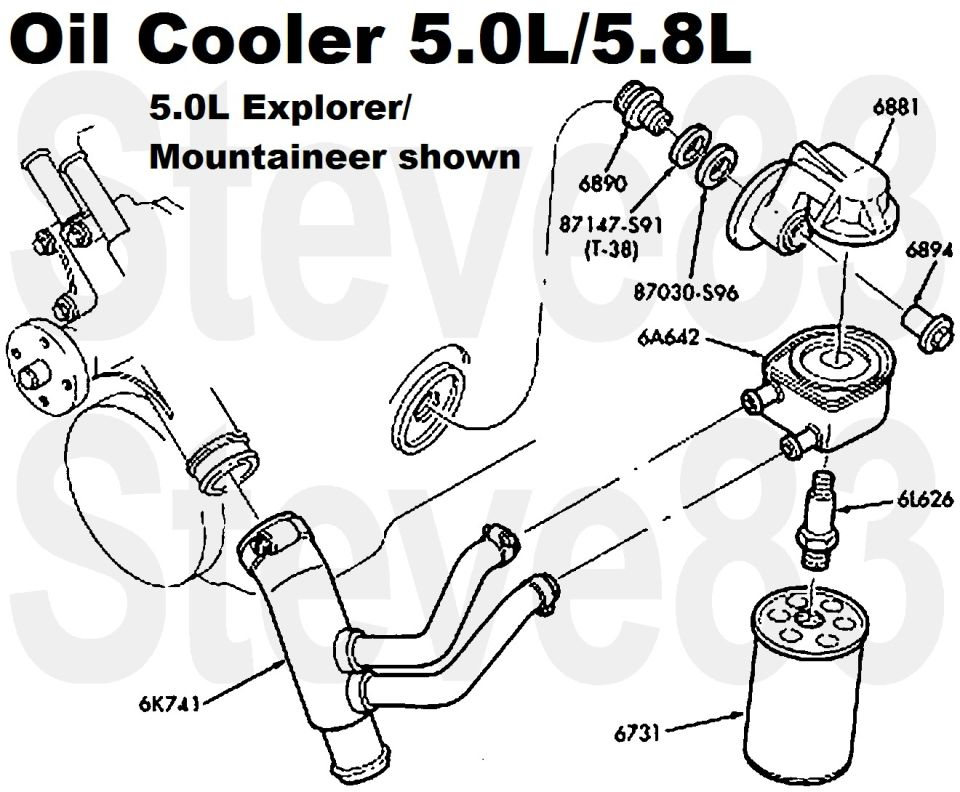

oil_cooler.jpg '94-97 Optional Smallblock Oil Cooler IF THE IMAGE IS TOO SMALL, click it. F-series/Bronco do not use the adapter (6881) & bolt (6894). The standard filter nipple (6890) is used to mount an FL-1A filter. Those with the oil cooler option ('94-97 only) use the adapter nipple (6L626) to mount the cooler (6A642), and the shorter FL-820S filter (same as 4.6L). The extension & sender will not fit with the factory oil cooler (which is useless anyway). [url=https://www.supermotors.net/registry/media/768241][img]https://www.supermotors.net/getfile/768241/thumbnail/switchsenderv8.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/723858][img]https://www.supermotors.net/getfile/723858/thumbnail/tsb880514oilgauge.jpg[/img][/url] The OEM for Ford/MC hoses is Dayco. V8 Upper Radiator Hose F1TA8B274TA [url=https://www.amazon.com/dp/B000C0TCQG]Dayco 71317[/url] or [url=https://www.amazon.com/dp/B01M72EY3L]Dayco 72691[/url], [url=https://www.amazon.com/dp/B000C2WD5G]Gates 22142[/url] V8 Oil Cooler Hose [url=https://www.amazon.com/dp/B000C0WMU4]Dayco 71735[/url], [url=https://www.amazon.com/dp/B000C2UCM2]Gates 22401[/url] or [url=https://www.amazon.com/dp/B000C2UCLI]Gates 22402[/url] V8 Lower Radiator Hose w/Oil Cooler [url=https://www.amazon.com/dp/B000C0TDCY]Dayco 71732[/url], [url=https://www.amazon.com/dp/B000C2SAVM]Gates 22143[/url] or [url=https://www.amazon.com/dp/B000C2UD1C]Gates 22541[/url] V8 Lower Radiator Hose w/o Oil Cooler F3TA8B237NA [url=https://www.amazon.com/dp/B001O4MU8G]Dayco 71740[/url] [url=https://www.amazon.com/dp/B000C2UAYM]Gates 21216[/url]
oil_cooler.jpg | Hits: 2211 | Posted on: 1/21/18 | View original size (333.04 KB)

'94-97 Optional Smallblock Oil Cooler
IF THE IMAGE IS TOO SMALL, click it.

F-series/Bronco do not use the adapter (6881) & bolt (6894). The standard filter nipple (6890) is used to mount an FL-1A filter. Those with the oil cooler option ('94-97 only) use the adapter nipple (6L626) to mount the cooler (6A642), and the shorter FL-820S filter (same as 4.6L). The extension & sender will not fit with the factory oil cooler (which is useless anyway).

.

The OEM for Ford/MC hoses is Dayco.
V8 Upper Radiator Hose F1TA8B274TA Dayco 71317 or Dayco 72691, Gates 22142
V8 Oil Cooler Hose Dayco 71735, Gates 22401 or Gates 22402
V8 Lower Radiator Hose w/Oil Cooler Dayco 71732, Gates 22143 or Gates 22541
V8 Lower Radiator Hose w/o Oil Cooler F3TA8B237NA Dayco 71740 Gates 21216
