What is the torque spec for the sway bar link nuts on a 1992-96 Ford F-Series 2WD?

The M12 x 1.75 nuts (items 5, N620469-S2, and 8, N620483-S2) are torqued to 71-100 N·m (52-74 ft-lb).

What is the Ford part number for the front stabilizer bar on 92-96 2WD F-Series trucks?

The front stabilizer bar is part number 5494 (item 1), and the sway bar end link assembly is 3C140/1 (item 2).

Which sway bar mounting view applies to an F-150 or F-250 under 8500 GVW?

View X applies to the F-150 and F-250 under 8500 GVW, using the insulator (5484), retainer (3B353), bolt/retainer N806789-S2, and nut N620482-S36.

What parts make up the sway bar frame mounting on these trucks?

The frame mount uses the insulator (5484), retainer (3B353), bracket (5C495) on some configurations, bolt and retainer N806789-S2 (M10-1.5 x 33.5 hex flange), and nut N620482-S36 (M12 x 1.75 hex flange).

What size are the sway bar end link bolt and washer?

Item 3 is a bolt M12-1.75 x 65 hex head (N605704-S2) and item 4 is a 13 x 34 x 2.5 flat hard washer (N801527-S2), secured by an M12 x 1.75 nut (N620469-S2).

Home/ Registry/ Ford/ Bronco/ 1980-1986/ “That dirty old truck”/ Photo supermotors.net/registry/media/1174872

1992-96 Ford F-150/F-250/F-350 2WD Front Sway Bar Diagram & Part Numbers

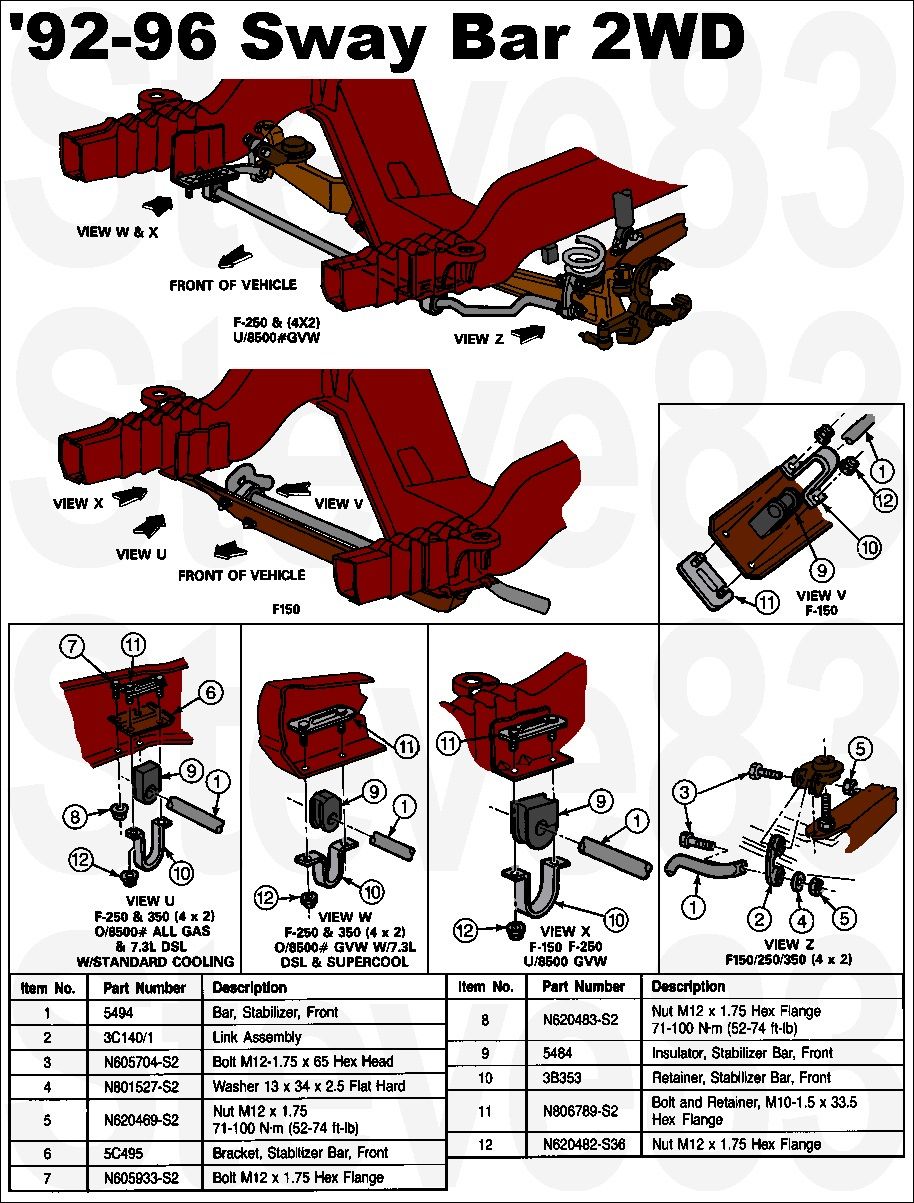

'92-96 2WD sway bar exploded parts breakdown with item numbers and parts list

‹ ›

Reference · 1980-1986 BroncoAll 61 exploded parts diagrams

1992-96 Ford F-150/F-250/F-350 2WD Front Sway Bar Diagram & Part Numbers

Ford 4.9L Intake Manifold Installation Diagram - Parts & Torque Specs (TSB 87-08-16)

1978-1996 Ford Bronco Tailgate Internals Diagram - Window Regulator & Parts

1994-96 Ford Bronco Tailgate Carpet Panel Diagram - Pushpins & Access Cover

Dana 44 IFS TTB Front Axle Exploded Diagram - Ford Bronco & F-150 4x4 Parts

1994-1997 Ford F-Series/Bronco RKE, Anti-Theft & Amp Module Mounting Diagram

Ford 8.8" Semi-Floating Rear Axle Exploded Diagram: Parts & Part Numbers

Dana 50 IFS Front Axle Exploded Parts Diagram - Ford Part Numbers

61exploded parts diagrams1980-1986 Ford Bronco More reference

Wiring diagram

Ford accessories catalog page with cellular mobile telephone and 40-channel CB emergency radio

Brochure

Ford door certification label dated 11/95 with GVWR 6300LB, P235/75R15XL tires and VIN 1FMEU15H4TLA76236

Spec plate

1992 Ford E4OD Transmission Fault Code Diagnosis Chart - DTC List & Symptoms

Service procedure

Schematic

1996 Ford Bronco/F-Series Starting System - Section 03-06 Contents

Manual page

Trim panel hole layout photos for positions A, B and C with tape measure readings from the body line

Blueprint

Ford 1996 5.8L vehicle information decal with vacuum hose routing diagram and ASF-32P plug

Vacuum routing

Torque spec

'95 F150 fuse and relay chart with fuse panel layout, ATC and Maxi fuse amp tables

Fuse chart

Front Anti-Sway Bar 2WD '92-96 (1" bar, 2.5" bushing)
AFAIK, all '80-86 & '92-96 Broncos use Energy 4.5106G front sway bar bushing set.

End link bolt N605704S439 or N605704S2

See also:
.
. . . . . .

Part of 1980-1986 Ford Bronco Exploded Parts Diagrams

Owner caption December 2025 · Photo 6524 of 6546

This document is an exploded parts diagram showing the front sway bar (stabilizer bar) installation for 1992-1996 Ford 2WD (4x2) F-Series trucks, F-150, F-250, and F-350. Multiple labeled views (U, V, W, X, and Z) illustrate different mounting configurations based on model and GVW rating: View U covers F-250/350 (4x2) over 8500# GVW with all gas engines and 7.3L diesel with standard cooling; View W covers F-250/350 (4x2) over 8500# GVW with 7.3L diesel and Supercool; View X covers F-150 and F-250 under 8500 GVW; View V shows F-150 frame-mounted details; View Z shows the end link assembly for F150/250/350 (4x2). A 12-item parts table lists Ford part numbers and descriptions, including the stabilizer bar (5494), link assembly (3C140/1), bracket (5C495), insulator (5484), retainer (3B353), and associated hardware (bolts, nuts, washers). Torque specifications are given for the M12 x 1.75 nuts: 71-100 N·m (52-74 ft-lb). The diagram helps a reader identify sway bar components, mounting orientation relative to the front of the vehicle, correct hardware sizes, and fastener torque values for repair or replacement work.

This document covers 1992-1996, which may differ from this 1983 Ford Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the torque spec for the sway bar link nuts on a 1992-96 Ford F-Series 2WD?: The M12 x 1.75 nuts (items 5, N620469-S2, and 8, N620483-S2) are torqued to 71-100 N·m (52-74 ft-lb).
What is the Ford part number for the front stabilizer bar on 92-96 2WD F-Series trucks?: The front stabilizer bar is part number 5494 (item 1), and the sway bar end link assembly is 3C140/1 (item 2).
Which sway bar mounting view applies to an F-150 or F-250 under 8500 GVW?: View X applies to the F-150 and F-250 under 8500 GVW, using the insulator (5484), retainer (3B353), bolt/retainer N806789-S2, and nut N620482-S36.
What parts make up the sway bar frame mounting on these trucks?: The frame mount uses the insulator (5484), retainer (3B353), bracket (5C495) on some configurations, bolt and retainer N806789-S2 (M10-1.5 x 33.5 hex flange), and nut N620482-S36 (M12 x 1.75 hex flange).
What size are the sway bar end link bolt and washer?: Item 3 is a bolt M12-1.75 x 65 hex head (N605704-S2) and item 4 is a 13 x 34 x 2.5 flat hard washer (N801527-S2), secured by an M12 x 1.75 nut (N620469-S2).
