1982-83 Ford Bronco Fuse Box Cover Diagram - Fuse Positions & Amp Ratings

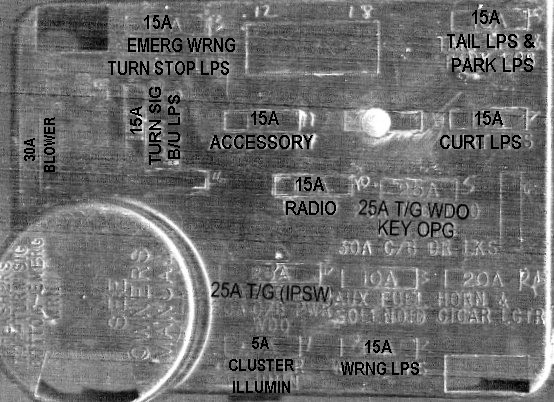

This document is a scanned photograph of a Ford Bronco fuse panel cover with digitally overlaid text labels identifying each fuse position and its amperage rating. The chart identifies the following circuits and fuse ratings: 15A Emergency Warning / Turn / Stop Lamps; 15A Tail Lamps & Park Lamps; 30A Blower; 15A Turn Signal / Back-Up Lamps; 15A Accessory; 15A Courtesy Lamps; 15A Radio; 25A Tailgate Window / Key Opening (with an embossed note reading approximately '30A C/B OR LKS'); 25A Tailgate (IPSW); a fuse group for Auxiliary Fuel, Horn & Solenoid, and Cigar Lighter (embossed 10A and 20A markings partially visible); 5A Cluster Illumination; and 15A Warning Lamps. A reader can use this chart to determine which fuse controls a given circuit and what amperage replacement fuse is required. The underlying embossed lettering molded into the original plastic cover is only partially legible in the scan; the overlaid labels are the clearly readable content. Some embossed position numbers and a circular block of embossed text in the lower-left corner cannot be reliably transcribed. The document itself contains no explicit year or model identification, though the uploader filed it for a 1982 Ford Bronco.
