'97 7.3L APC wiring diagram with data link connector, C1027 and…

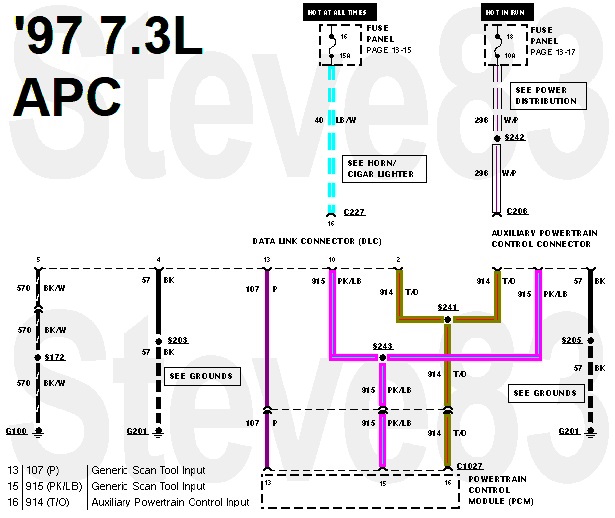

'97 7.3L APC wiring diagram with data link connector, C1027 and circuits 107, 914 and 915
'97 7.3L APC wiring diagram with data link connector, C1027 and circuits 107, 914 and 915Original file
'97 7.3L APC wiring diagram with data link connector, C1027 and circuits 107, 914 and 915

Reference · 1992-1997 F-250All 5 wiring diagrams

Ford Diesel Warning Lights Wiring Diagram 1992-1997 - Wait-to-Start, WIF Lamp Class II trailer relay wiring diagram with marker lamps, backup lamps and battery charge relays '97 7.3L APC wiring diagram with data link connector, C1027 and circuits 107, 914 and 915 APP (TPS) and IVS sensor location diagram with numbered callouts at the accelerator pedal F-Series diesel fuel tank selector switch and valve wiring diagram with C268 and C423 connector pinouts 5wiring diagrams1992-1997 Ford F-250 More reference '97 International Navistar 7.3 DIT engine emissions label, model A225, 225 @ 3000 rated powerSpec plate Ford Power Stroke Diesel Lube Oil System Schematic: Oil Flow & Bypass PSISchematic 1997 Ford 7.3L Power Stroke Fuel System Exploded Diagram & Part NumbersExploded parts 1994.5-97 Ford 7.3L Auxiliary Powertrain Control (APC) Module Installation SheetService procedure '97 F-Series diesel fuse and relay chart with color-coded fuse box layouts, amperage and circuit listFuse chart Ford interior color chip chart with code 4221 Medium Opal marked next to a Cromax paint canManual page 1993 Ford 5.8L and 7.5L heavy-duty emission labels with vacuum hose routing and 10° BTDC timingVacuum routing 1994 Ford F-250 Custom Bumper Blueprint - Hand-Drawn Design with Tube SizesBlueprint

7.3L Auxilliary PCM
IF THE IMAGE IS TOO SMALL, click it.

See also:

Part of 1992-1997 Ford F-250 Wiring Diagrams

Owner caption · Photo 86 of 195

Is this accurate? Sign in to help verify it.
