2010 Hyundai Genesis Coupe PDM M51-A/M51-B & Rear Parking Buzzer Location Photo

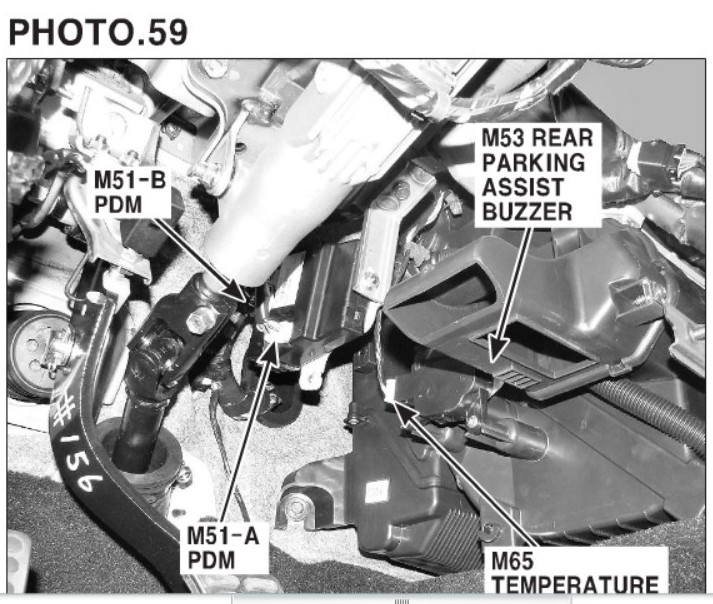

This document is a labeled photograph (identified as PHOTO.59) from an automotive service reference, uploaded as applicable to a 2010 Hyundai Genesis (BK1). The photo shows an under-dash area near the steering column and intermediate steering shaft (universal joint visible), with the HVAC/heater housing on the right side. Arrows and text boxes identify the locations of several electrical components: connectors M51-A PDM and M51-B PDM (Power Distribution Module connectors) located near the steering column, the M53 Rear Parking Assist Buzzer mounted on the ducting to the right, and an M65 Temperature component (label truncated at the bottom of the scan, likely a temperature sensor/actuator) on the heater unit. A handwritten '#156' appears on a bracket in the foreground. A reader can use this photo to physically locate the PDM connectors M51-A and M51-B, the rear parking assist buzzer, and the M65 temperature component when performing diagnostics or repairs behind the dashboard. No fuse values, wire colors, torque specs, or part numbers are shown—this is purely a component location photograph.
