Hyundai Genesis Coupe Passenger Compartment Fuse Details Wiring Diagram SD120-1

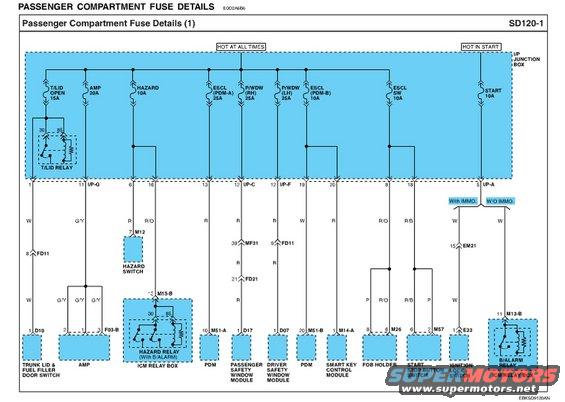

Passenger compartment fuse box schematic (page SD120-1) showing hot-at-all-times and hot-in-start fuses with amp ratings feeding AMP, hazard, PDM, safety modules, smart key and burglar alarm.
This document is page SD120-1, "Passenger Compartment Fuse Details (1)," a factory-style wiring/fuse distribution diagram showing how fuses in the I/P (instrument panel) junction box feed downstream circuits. Fuses shown with amperage ratings include T/LID OPEN 15A, AMP 20A, HAZARD 10A, ESCL (PDM-A) 25A, P/WDW (RH) 25A, P/WDW (LH) 25A, ESCL (PDM-B) 10A, ESCL SW 10A (all hot at all times), and START 10A (hot in start). The T/LID relay is shown inside the junction box. Each fuse output is traced with wire colors (W, G/Y, R, R/O, R/B, P) and connector identifiers (e.g., FD11, M12, MF31, FD21, M13-B, M51-A, M51-B, M14-A, M26, M57, EM21, E23, D10, D17, D07, F03-B) to end components: trunk lid & fuel filler door switch, amplifier, hazard switch and ICM relay box hazard relay, PDM, passenger and driver safety window modules, smart key control module, fob holder, start/stop button switch, ignition lock switch (with immobilizer), and burglar alarm relay in the ICM relay box (without immobilizer). Reference codes E0D2A6B6 and EBKSD9120AN appear on the page.
Is this accurate? Sign in to help verify it.
Frequently asked questions
- What amperage is the HAZARD fuse in the passenger compartment fuse box?
- The HAZARD fuse is rated 10A and feeds the hazard switch (connector M12 pin 7) and the hazard relay in the ICM relay box.
- What fuse powers the power windows on this diagram?
- P/WDW (RH) 25A and P/WDW (LH) 25A fuses feed the passenger safety window module (connector D17) and driver safety window module (connector D07) respectively.
- Which fuse is hot only in start?
- The START 10A fuse is fed from a 'HOT IN START' source; with immobilizer it feeds the ignition lock switch (via EM21 pin 15 and E23 pin 1), and without immobilizer it feeds the B/ALARM relay in the ICM relay box (M13-B pin 11).
- What size is the AMP fuse and where does it go?
- The AMP fuse is 20A; it runs on G/Y wires to connector F03-B (pins 2, 1, 3) at the amplifier (AMP).
- What fuses supply the ESCL/PDM circuits?
- ESCL (PDM-A) 25A, ESCL (PDM-B) 10A, and ESCL SW 10A fuses feed the PDM (connectors M51-A pin 10 and M51-B pin 20) and the smart key control module (M14-A pin 1).
