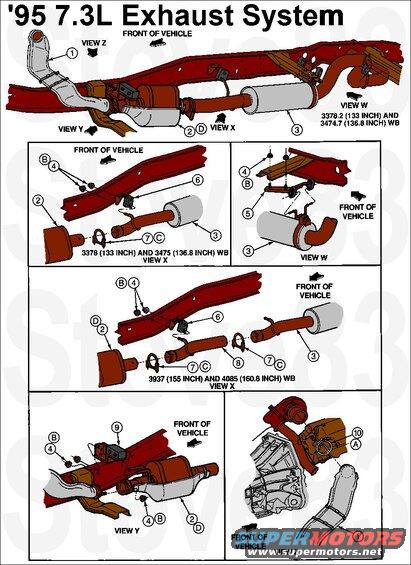

'95 7.3L DIT Exhaust System
IF THE IMAGE IS TOO SMALL, click it.

1 Engine Charge Exhaust Pipe 6N646
2 Three Way Catalytic Converter 5E212
3 Muffler 5230
4 Nut N602481-S2
5 Muffler Frame Bracket 5260
6 Exhaust Outlet Pipe Frame Bracket 5260
7 Clamp N807703-S
8 Muffler Inlet Pipe 5A212
9 Muffler Pipe Bracket 5277
10 Muffler Inlet/Outlet Pipe Yoke Clamp 5A231
A Tighten to 8.4-11.6 N-m (74-103 Lb-In)
B Tighten to 34-46 N-m (25-34 Lb-Ft)
C Tighten to 46-64 N-m (36-45 Lb-Ft)
D Catalytic Converter Heat Shields on E40D Only
