Edelbrock four-barrel carburetor on a V8 with red valve covers a…

‹ ›

Fuel System RE-Plumb - August 14, 2004View all 8

Adjustable fuel pressure regulator and clear Fram inline fuel filter mounted in engine bay

Carter electric fuel pump mounted under a vehicle with Gates fuel hose and inline glass filter

Frame-rail underbody with new Gates 3/8 fuel line and wire loom beside red coil spring

Underbody crossmember with fuel line and loom, red coil spring and leaf spring visible

Underbody frame rail with black 3/8 fuel line and wire loom routed toward the differential

Dusty engine bay detail with rubber hoses, corrugated wire loom and yellow wire

Underside view of rusty front coil spring, control arms and brake lines on a truck

8photos in this albumView all

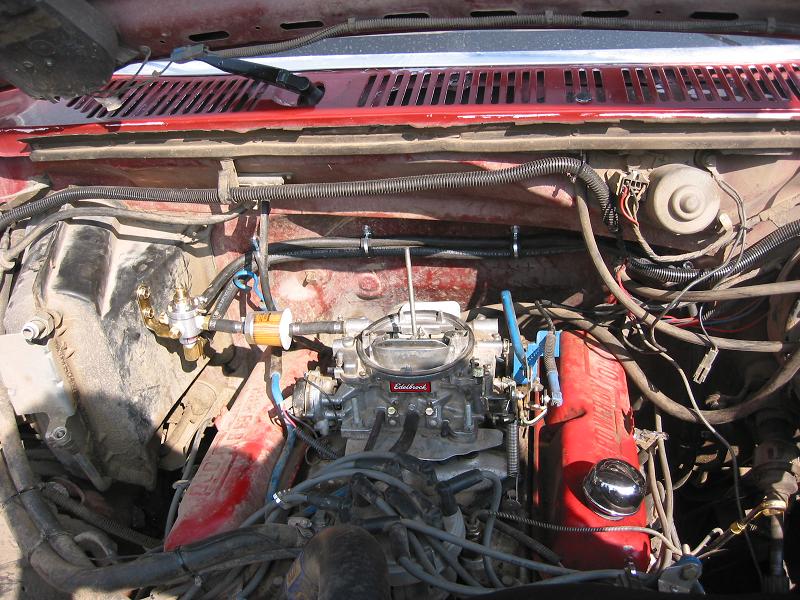

Overhead engine-bay view of a carbureted V8 in a red vehicle, air cleaner removed to expose an Edelbrock four-barrel carburetor on an aluminum intake. A brass-bodied fuel pressure regulator and inline glass-bowl filter feed the carb, with red valve covers, blue plug wires and a chrome breather cap alongside.

AI caption August 2004 · Photo 163 of 455
