Adjustable fuel pressure regulator and clear Fram inline fuel fi…

‹ ›

Fuel System RE-Plumb - August 14, 2004View all 8

Edelbrock four-barrel carburetor on a V8 with red valve covers and blue plug wires

Carter electric fuel pump mounted under a vehicle with Gates fuel hose and inline glass filter

Frame-rail underbody with new Gates 3/8 fuel line and wire loom beside red coil spring

Underbody crossmember with fuel line and loom, red coil spring and leaf spring visible

Underbody frame rail with black 3/8 fuel line and wire loom routed toward the differential

Dusty engine bay detail with rubber hoses, corrugated wire loom and yellow wire

Underside view of rusty front coil spring, control arms and brake lines on a truck

8photos in this albumView all

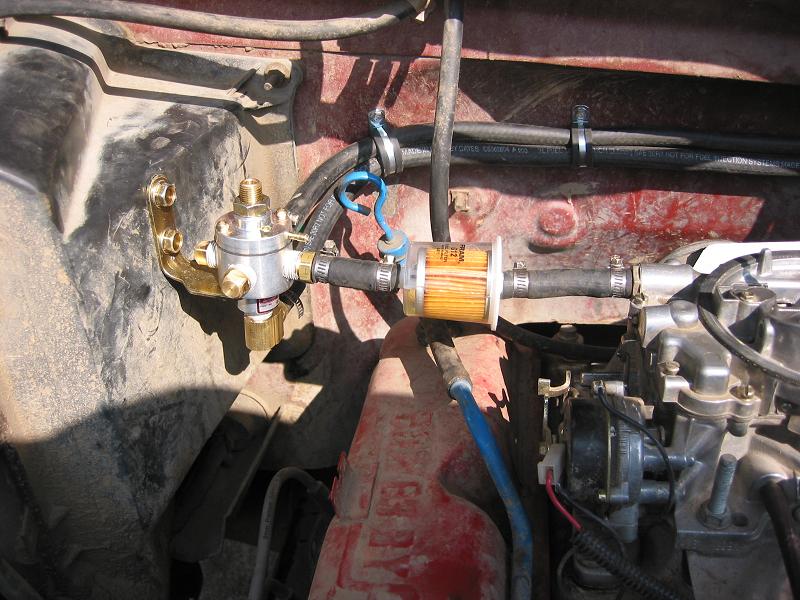

Close-up of a fuel system installation in an engine bay, showing an adjustable fuel pressure regulator with brass fittings bracket-mounted to the inner fender, feeding a clear-bodied Fram inline fuel filter with an orange element through rubber hose and screw clamps. Blue-jacketed wiring and rubber lines run past a red-painted firewall toward a carburetor at right.

AI caption August 2004 · Photo 164 of 455
