Frame-rail underbody with new Gates 3/8 fuel line and wire loom…

‹ ›

Fuel System RE-Plumb - August 14, 2004View all 8

Edelbrock four-barrel carburetor on a V8 with red valve covers and blue plug wires

Adjustable fuel pressure regulator and clear Fram inline fuel filter mounted in engine bay

Carter electric fuel pump mounted under a vehicle with Gates fuel hose and inline glass filter

Underbody crossmember with fuel line and loom, red coil spring and leaf spring visible

Underbody frame rail with black 3/8 fuel line and wire loom routed toward the differential

Dusty engine bay detail with rubber hoses, corrugated wire loom and yellow wire

Underside view of rusty front coil spring, control arms and brake lines on a truck

8photos in this albumView all

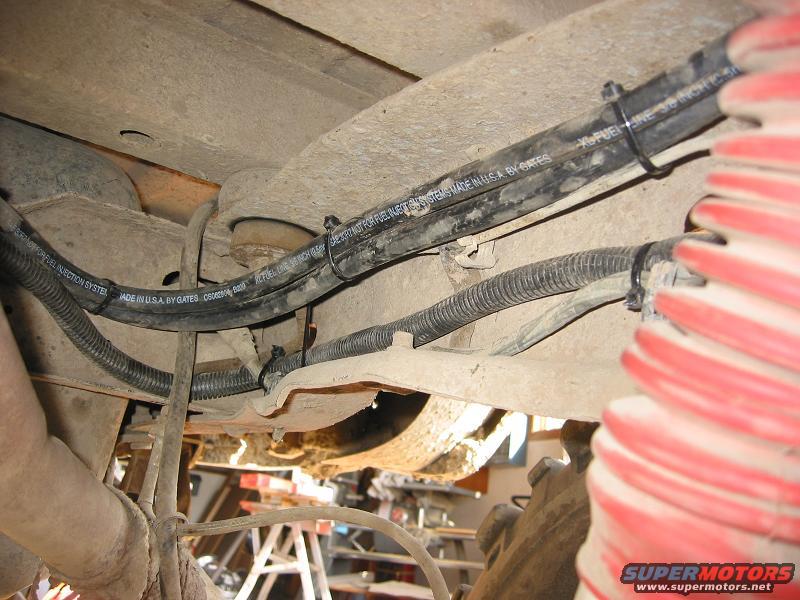

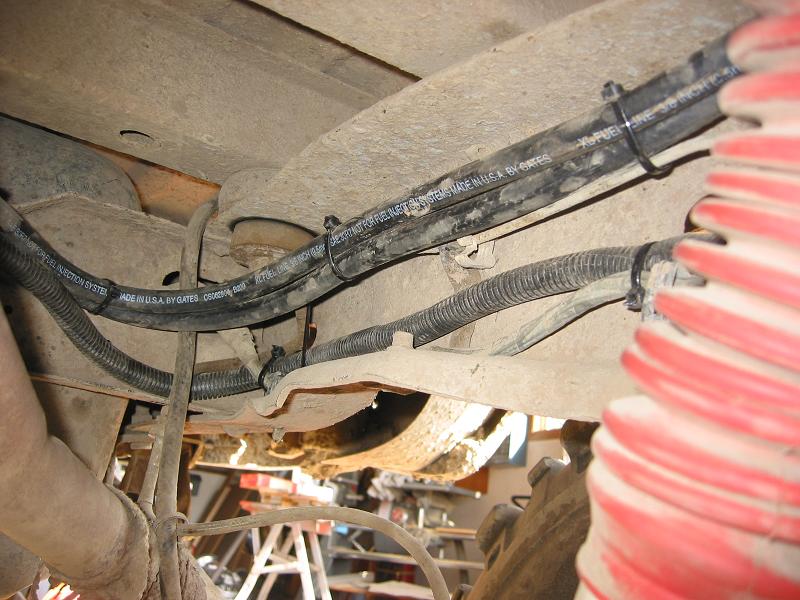

Underbody view along a truck frame rail showing rerouted black Gates fuel-injection hose printed "3/8 FUEL LINE" zip-tied alongside a corrugated wire loom and older lines. A red-painted coil spring and dirty axle housing are visible at right, with the vehicle up on jack stands in a garage.
