Dusty engine bay detail with rubber hoses, corrugated wire loom…

‹ ›

Fuel System RE-Plumb - August 14, 2004View all 8

Edelbrock four-barrel carburetor on a V8 with red valve covers and blue plug wires

Adjustable fuel pressure regulator and clear Fram inline fuel filter mounted in engine bay

Carter electric fuel pump mounted under a vehicle with Gates fuel hose and inline glass filter

Frame-rail underbody with new Gates 3/8 fuel line and wire loom beside red coil spring

Underbody crossmember with fuel line and loom, red coil spring and leaf spring visible

Underbody frame rail with black 3/8 fuel line and wire loom routed toward the differential

Underside view of rusty front coil spring, control arms and brake lines on a truck

8photos in this albumView all

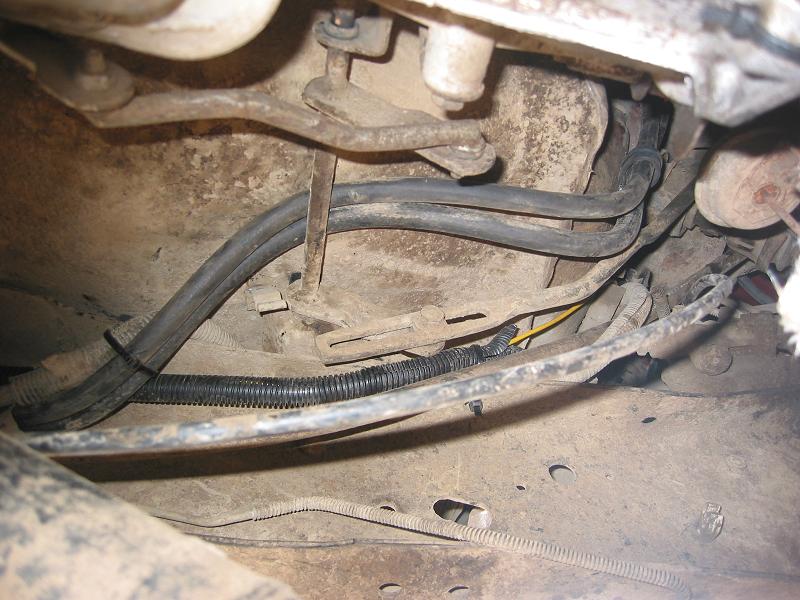

Underhood view down into a dusty engine bay showing rubber hose runs, a black corrugated wire-loom with a yellow wire poking out, and metal brackets and clips bolted to a grimy inner fender and frame rail. Everything is coated in road dust and light surface rust, with no clean painted surfaces visible.

AI caption August 2004 · Photo 169 of 455
