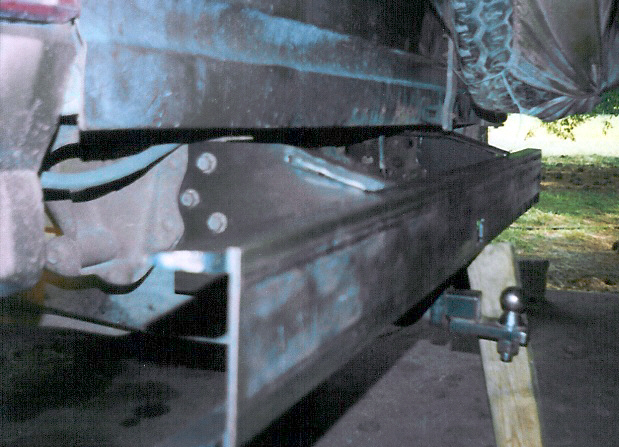

Underside view of a vehicle frame, leaf spring and rear axle on…

I designed & built the rear bumper to bolt on using only the factory holes in the frame & the ones from the aftermarket receiver on the bottom of the frame rails. The front bumper uses only factory holes. The basic structure of this & my first front bumper is 3 pieces of hot-rolled C-channel.

.

This bumper ended up weighing ~180# empty (when it was on the '83 frame).



See the NEXT few pics...
