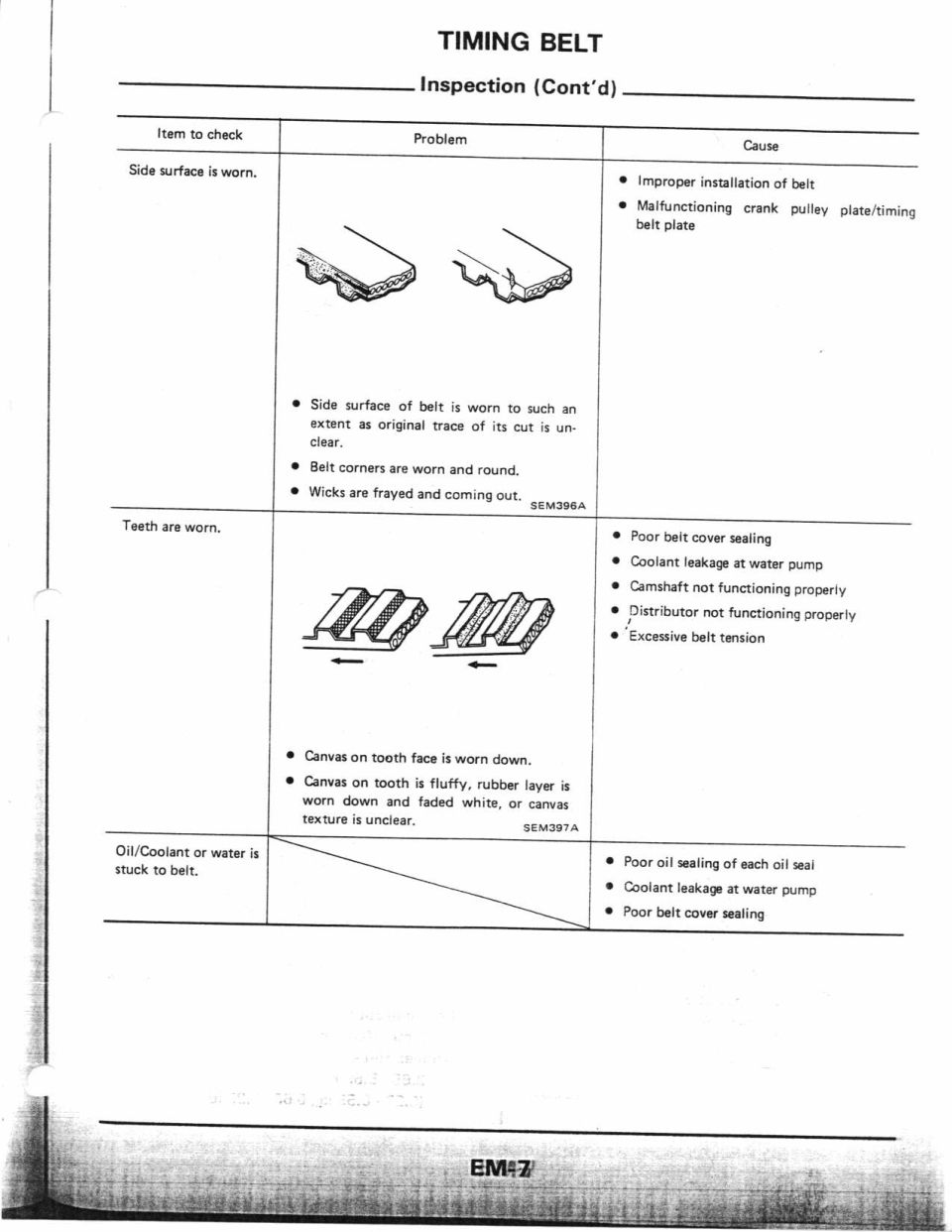

Timing belt inspection page from a service manual with wear diag…

TIMING BELT Inspection (Cont'd) Item to check Problem Pause Side surface is worn. Side surface of belt is worn to such an exient as original trace of its cut is un- clear. Bel! corners are worn and roundi Wicks are frayed and earning out. my 0 Improper installaion of belt 0 Malfunctiuning crank pulley plate/timing beltplzte Teeth are worn. Canvas on moth face is worn down. Canvas on tooth is fluffy. rubber layer is worn down and faded white, or canvas texture is unclear. semen 9 Poor belt cover sealing l Coolant leakage at water pump C Camshaft not functioning properly 0 [Distributor not functioning properly o Excessive belt tension Oil/Cnalant or water is siuck to belt. 0 Poor oil sealing 0f each nil seal I (balant leakage at water pump I Poor be cover sealing
