Nissan Micra Engine Outer Components Torque Specs - Service Manual Page EM-2

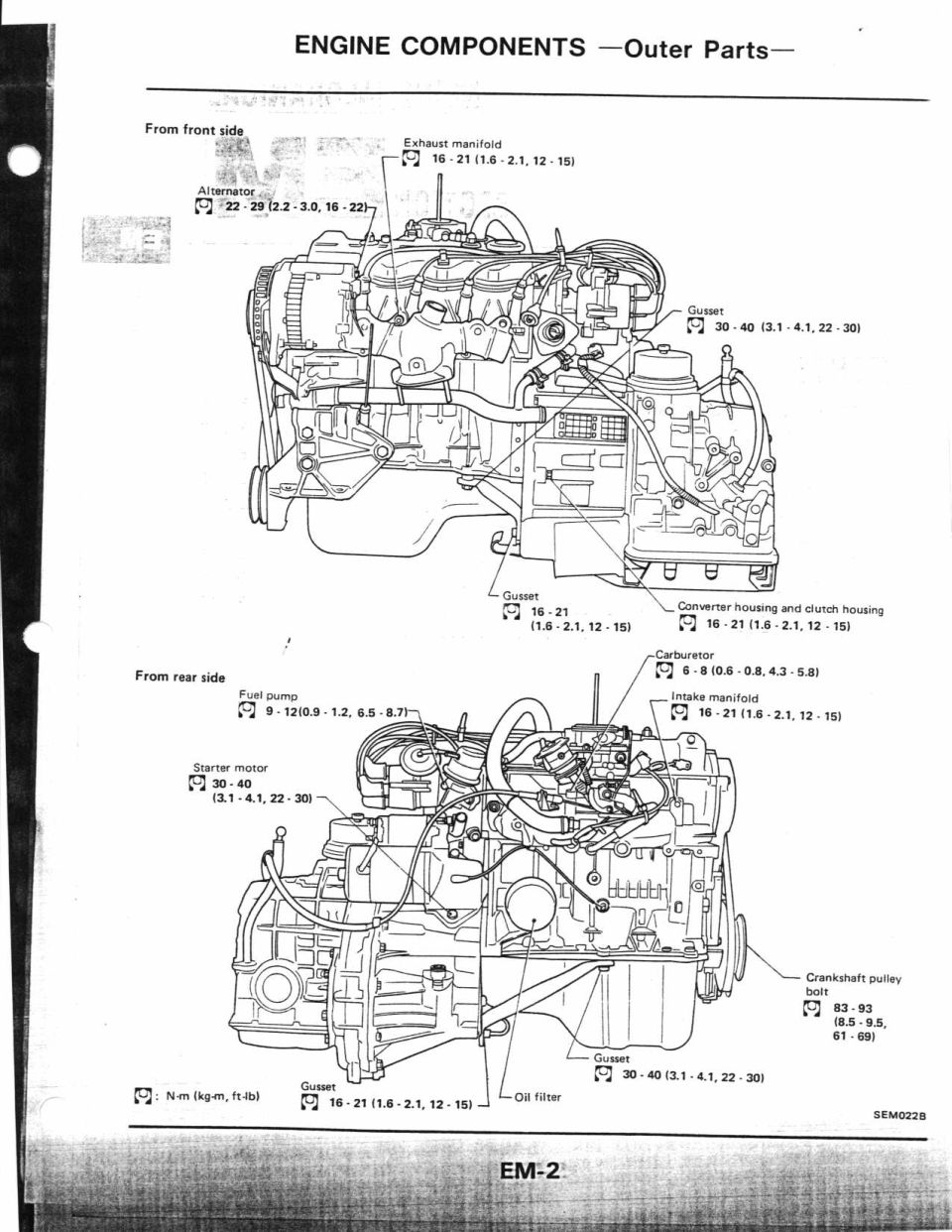

This is page EM-2 from a Nissan factory service manual, Engine Mechanical (EM) section, titled 'ENGINE COMPONENTS: Outer Parts, '. It presents two exploded/side-view line drawings of the engine, one 'From front side' and one 'From rear side', with torque specification callouts for the externally mounted engine components. Torque values are given in N·m with kg-m and ft-lb equivalents in parentheses. Front-side callouts cover the exhaust manifold (16-21 N·m), alternator (22-29 N·m), gussets (30-40 and 16-21 N·m), and the converter housing and clutch housing (16-21 N·m). Rear-side callouts cover the carburetor (6-8 N·m), intake manifold (16-21 N·m), fuel pump (9-12 N·m), starter motor (30-40 N·m), crankshaft pulley bolt (83-93 N·m / 61-69 ft-lb), additional gussets, and the oil filter location. The figure reference code SEM022B appears at the bottom right. A reader can use this page to identify the location of outer engine components and the correct fastener torque values for removing and reinstalling them. The presence of a carburetor callout indicates a carbureted engine.
