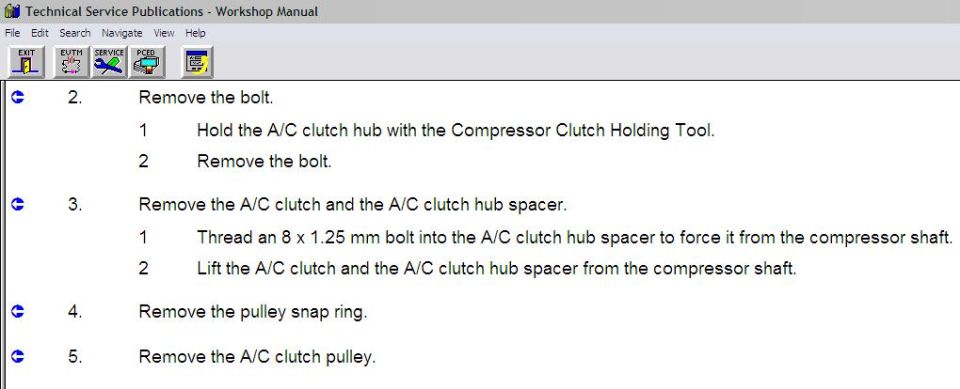

Workshop manual steps for removing the A/C clutch, hub spacer, s…
Reference · 1998-2011 Crown VictoriaAll 12 service procedures
A/C clutch removal: hold the hub with the Compressor Clutch Holding Tool, force the spacer off with an 8 x 1.25 mm bolt, then remove the pulley.
Part of 1998-2011 Ford Crown Victoria Service Procedures
5 Technical Service Publications , Workshop Manual File Edit Search Navigate new HElD 1 lwl El c 2 Remove the bolt l Hold the A/C clutch hub with the Compressor Clutch Holding Tool 2 Remove the bolt C 3 Remove the A/C clutch and the A/C clutch hub spacer l Thread an 8 xl 25 mm bolt into the A/C clutch hub spacer to force it from the compressor shaft 2 Lift the A/C clutch and the A/C clutch hub spacer from the compressor shaft c 4 Remove the pulley snap ring c 5 Remove the A/C clutch pulley
