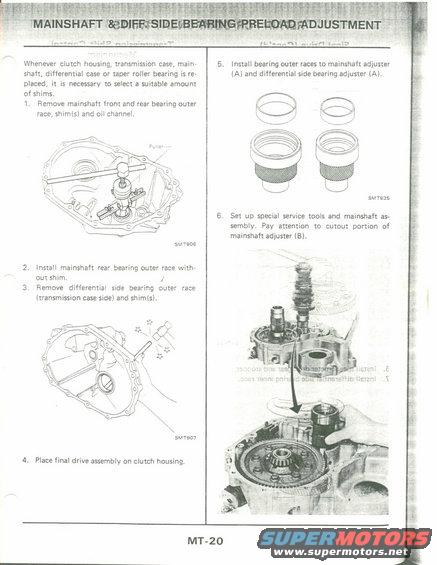

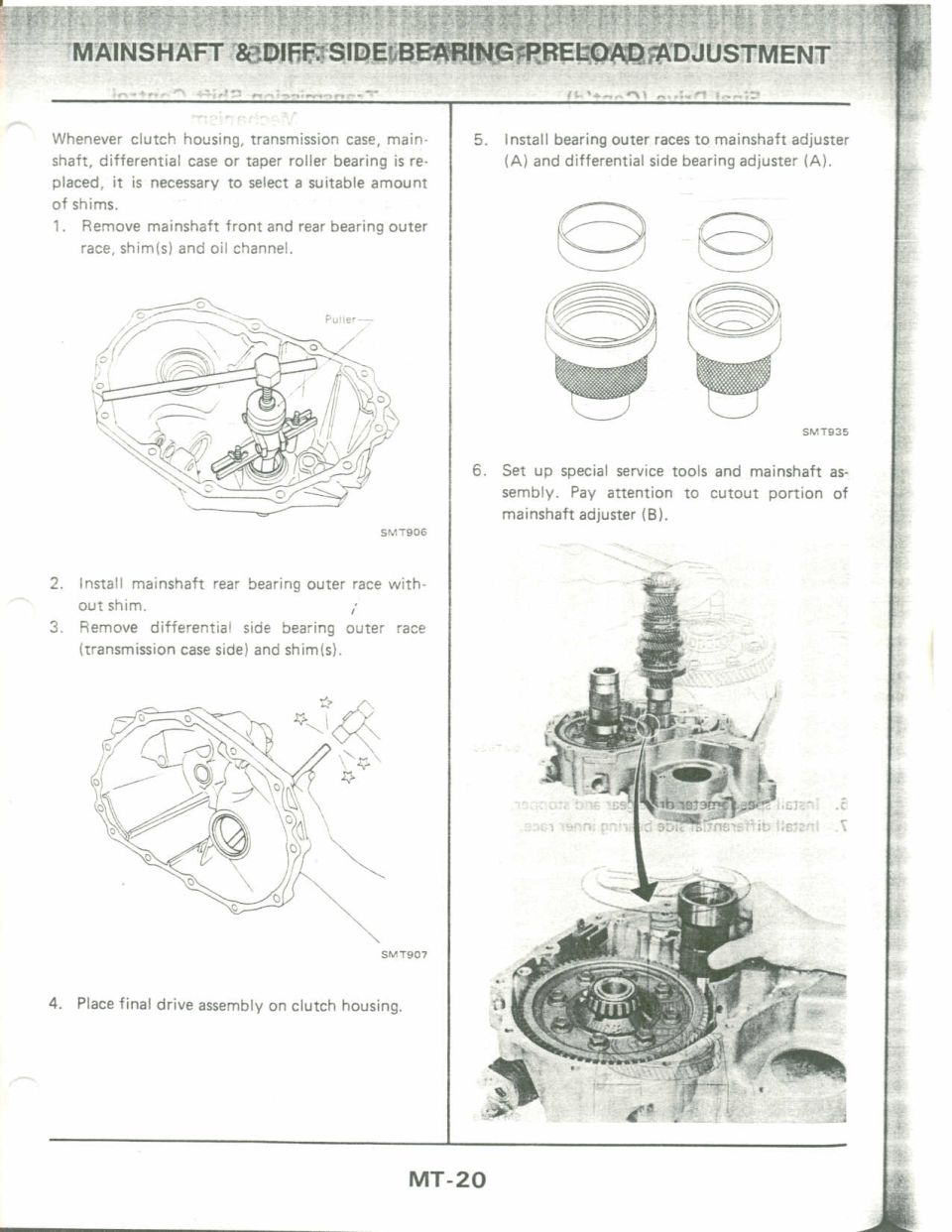

Transmission service manual page on mainshaft and differential b…

Whenever clutch housing, transmission case, main- shaft, differential case or taper roller bearing is re- placed, it is necessary to select a suitable amount of shims. 1. Remove mainshaft front and rear bearing outer race, shimlsl and oil channel. SMTSUE 2. Install mainshaft rear bearing outer race with out shim. ,' 3. Remove differential side bearing outer race (transmission case side) and shimls), SMT907 4, Place final drive assembly on clutch housing. lLA'\ -. 5, Install bearing outer races to mainshaft adjuster (A) and differential side bearing adjuster (Al, minus 6. Set up special service tools and mainshaft as- sembly. Pay attention to cutout portion of mainshaft adjuster (B), .m 4:: . ' 'f ; ; 32 e
