Nissan Micra Manual Transaxle S.D.S. Specs MT-28 – Shims, Preload, Plunger

Service Data and Specifications: synchronizer snap ring, side gear clearance, bearing preload shim charts

‹ ›

Manual transaxle SDS tables: 3rd/4th synchronizer hub snap ring thickness, side gear to pinion mate clearance 0-0.3 mm, bearing preload and reverse check plunger part numbers.

AI caption October 2005 · Photo 176 of 412

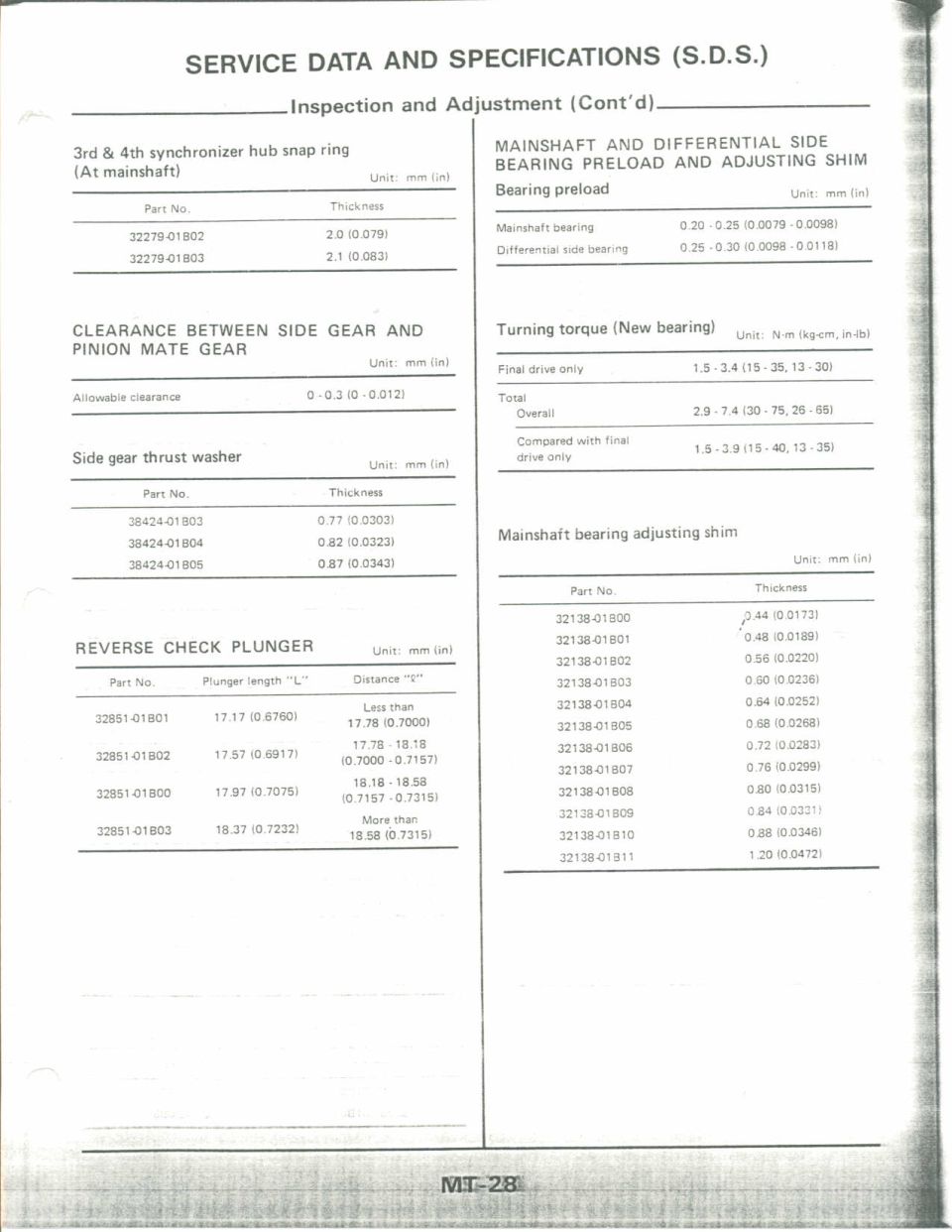

This is page MT-28 from a factory service manual's Service Data and Specifications (S.D.S.) section for a manual transaxle, covering inspection and adjustment values. It lists selective part numbers and thicknesses for the 3rd & 4th synchronizer hub snap ring at the mainshaft (32279-01B02/B03, 2.0-2.1 mm), the allowable clearance between side gear and pinion mate gear (0-0.3 mm), and side gear thrust washer part numbers 38424-01B03 through -01B05 (0.77-0.87 mm). A reverse check plunger table matches plunger length "L" (17.17-18.37 mm) to a measured distance "ℓ" via part numbers 32851-01B00 through -01B03. Mainshaft and differential side bearing preload specs are 0.20-0.25 mm and 0.25-0.30 mm respectively, with new-bearing turning torque values: final drive only 1.5-3.4 N·m, total overall 2.9-7.4 N·m, and total compared with final drive only 1.5-3.9 N·m. Finally, a table of twelve mainshaft bearing adjusting shims (32138-01B00 through -01B11) covers thicknesses from 0.44 to 1.20 mm. All values are given in millimeters with inch equivalents. This page supports transaxle rebuild and shimming procedures.
