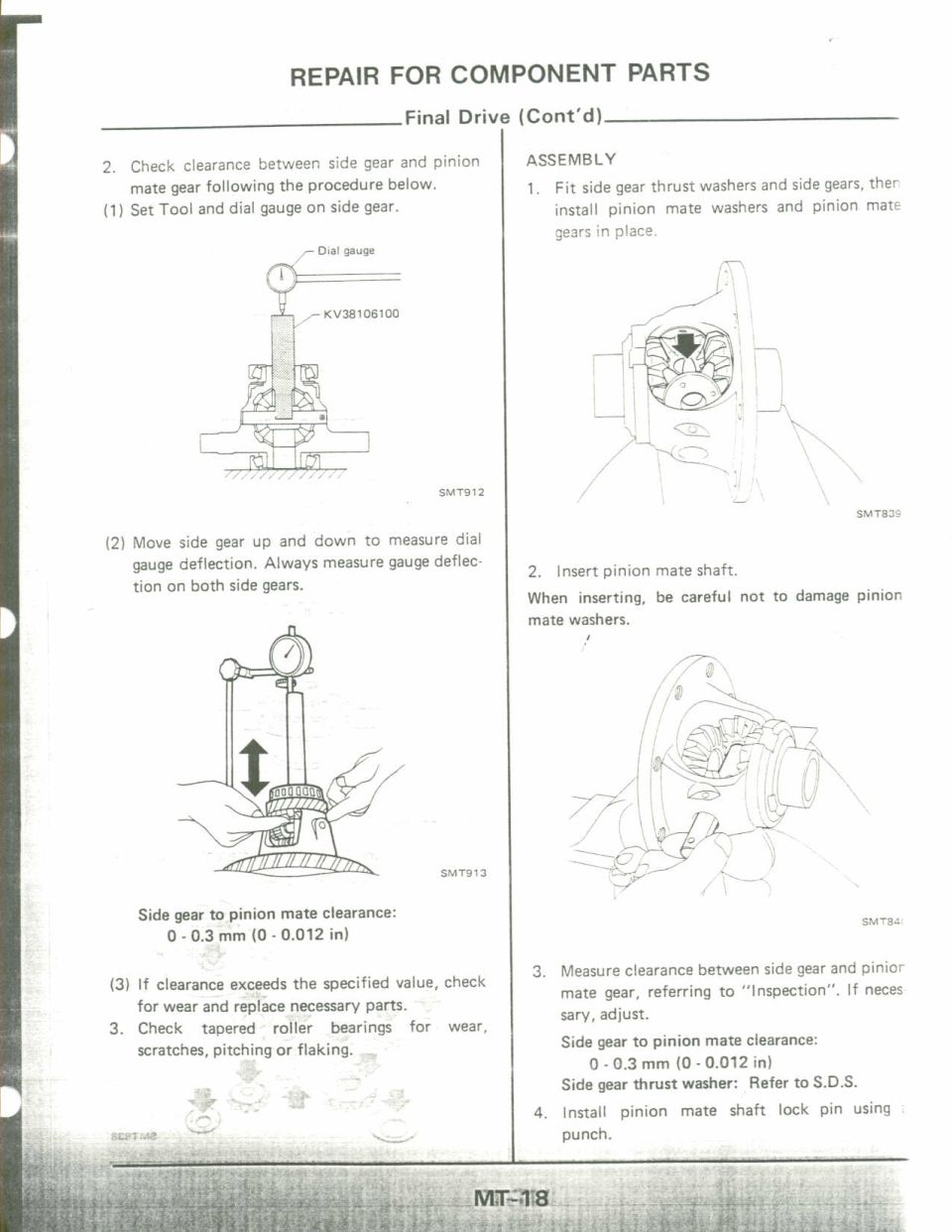

REPAIR FOR COMPONENT PARTS 2. Check clearance between side gear and pinion mate gear following the procedure below. (1) Set Tool and dial gauge on side gear. (r Dial gauge smeiz (2) Move side gear up and down to measure dial gauge deflection. Always measure gauge deflec tion on both side gears. 5MT91 : Side gear to pinion mate clearance: D - 0.3 mm (0 - 0.012 in) (3) If clearance exceeds the specified value, check for wear and replace necessary parts. 3. Check tapered roller bearings for wear, scratches, pitching or flaking. Final Drive (Cont'd) ASSEMBLY 1. Fit side gear thrust washers and side gears, Iher install pinion mate washers and pinion mate gears in place. sMTase 2. Insert pinion mate shaft. When inserting, be careful not to damage pinion mate washers. SMTE: 3. Measure clearance between side gear and pinior mate gear, referring to inspection". if neces sary, adjust. Side gear to pinion mate clearance: 0 - 0.3 mm (0 - 0.012 in) Side gear thrust washer: Refer to 8.0.8. 4. Install pinion mate shaft lock pin using punch,
