1990 Nissan Micra Manual Transmission Reassembly Procedure - Page MT-23

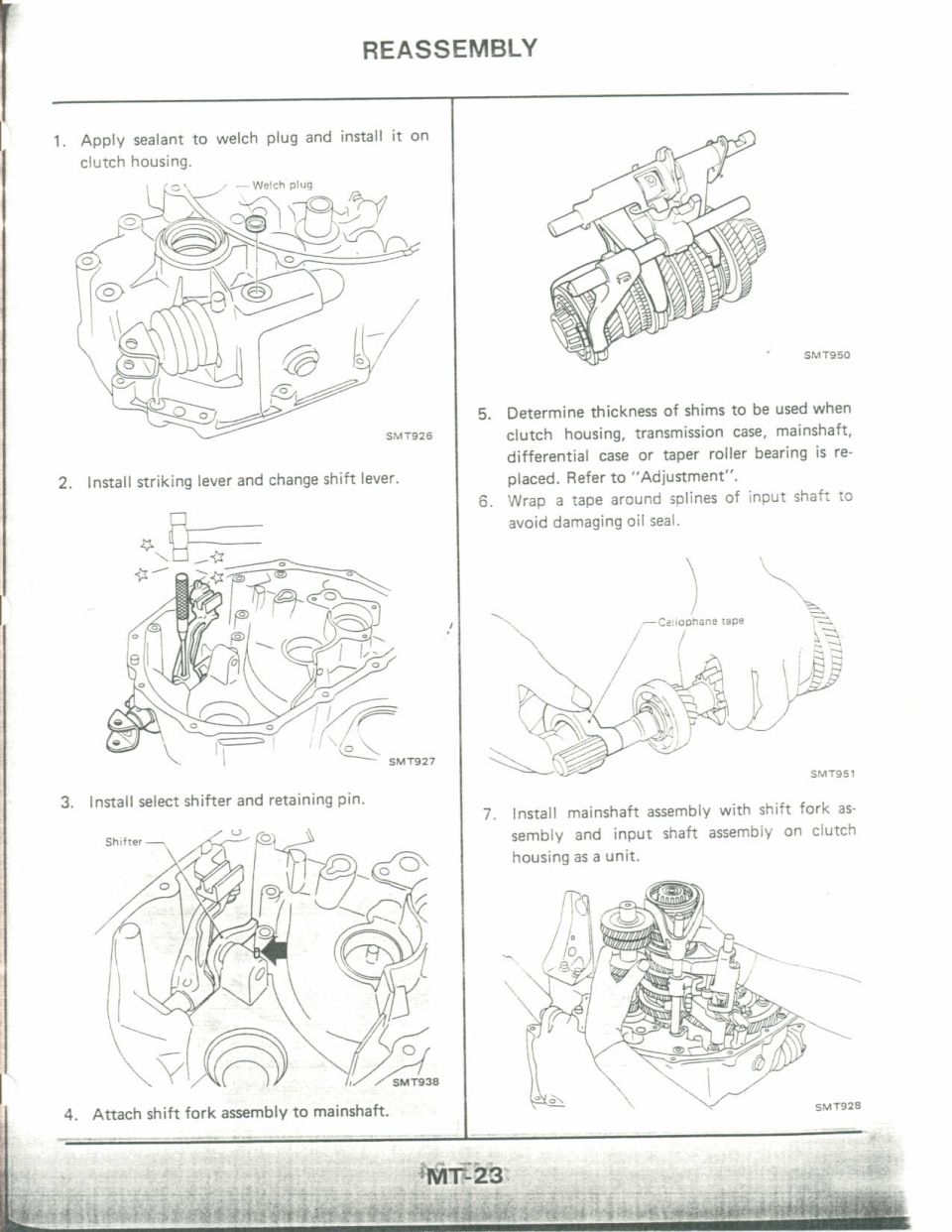

This document is a single page (MT-23) from a manual transmission (transaxle) service manual section titled "REASSEMBLY." It gives a seven-step illustrated procedure for reassembling the transmission onto the clutch housing. Steps include: (1) applying sealant to the welch plug and installing it on the clutch housing; (2) installing the striking lever and change shift lever; (3) installing the select shifter and retaining pin; (4) attaching the shift fork assembly to the mainshaft; (5) determining the thickness of shims to be used whenever the clutch housing, transmission case, mainshaft, differential case, or taper roller bearing is replaced (referring the reader to the "Adjustment" section); (6) wrapping cellophane tape around the input shaft splines to avoid damaging the oil seal; and (7) installing the mainshaft assembly with shift fork assembly and input shaft assembly onto the clutch housing as a single unit. Six line-art illustrations accompany the steps, referenced by figure codes SMT926, SMT927, SMT938, SMT950, SMT951, and SMT928. The page contains no torque values, part numbers, or model/year applicability statements. It was uploaded as part of a multi-page manual set attributed to a 1990 Nissan Micra.
