What is the wheel nut torque specification in this document?

Wheel nut torque is 98-118 N·m (10.0-12.0 kg-m, 72-87 ft-lb).

What type of rear suspension does this document cover?

A 4-link with coil spring suspension using a road sensing vortex type shock absorber.

What are the torque specs for the upper and lower links?

All upper and lower link fasteners (to axle tube and to body) are 77-98 N·m (7.9-10.0 kg-m, 57-72 ft-lb).

What are the coil spring specifications listed?

Wire diameter 8.8 mm (0.346 in), coil diameter 85 mm (3.35 in), free length 322 mm (12.68 in) left/right, spring constant 14.2 N/mm (1.45 kg/mm, 81.2 lb/in), identification color White x 1.

What is the shock absorber torque to the body and axle tube?

Shock absorber to body: 19-25 N·m (1.9-2.6 kg-m, 14-19 ft-lb); shock absorber to axle tube: 48-60 N·m (4.9-6.1 kg-m, 35-44 ft-lb).

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/253022

Nissan Rear Suspension Service Data & Specs (RA-7) - Torque & Spring Specs

Rear suspension general specifications and tightening torque chart: 4-link coil-spring, shock absorber, links

‹ ›

Service Data and Specifications for 4-link coil-spring rear suspension. Coil dia 8.8 mm; wheel nut 98-118 N-m; shock-absorber-to-body 19-25 N-m; lower/upper link to body 77-93 N-m.

AI caption October 2005 · Photo 276 of 412

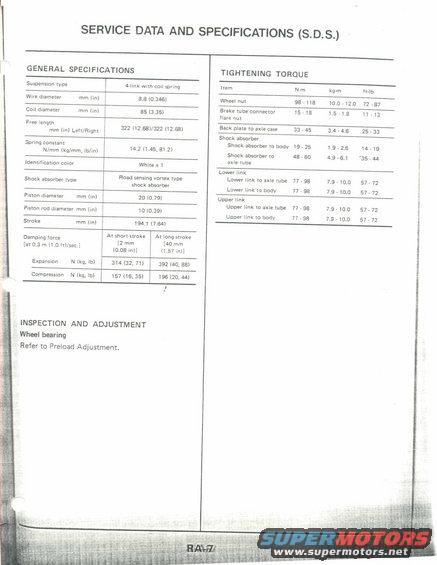

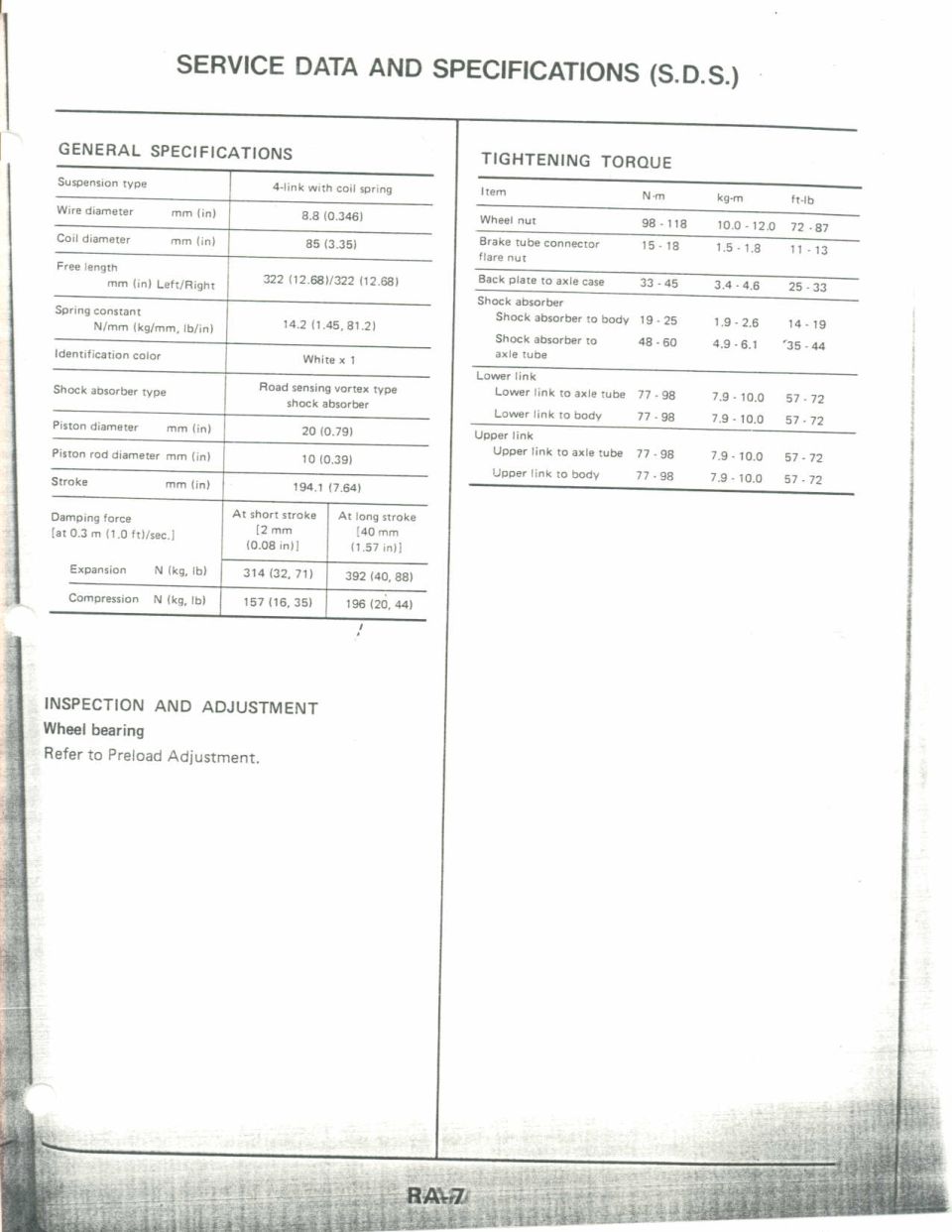

This is a scanned page (page code RA-7) from a factory service manual's Service Data and Specifications (S.D.S.) section covering a rear suspension/rear axle system. The General Specifications table describes a 4-link with coil spring suspension, giving coil spring data: wire diameter 8.8 mm (0.346 in), coil diameter 85 mm (3.35 in), free length 322 mm (12.68 in) left and right, spring constant 14.2 N/mm (1.45 kg/mm, 81.2 lb/in), and identification color White x 1. Shock absorber specs list a 'road sensing vortex type' shock absorber with 20 mm (0.79 in) piston diameter, 10 mm (0.39 in) piston rod diameter, 194.1 mm (7.64 in) stroke, and damping force figures at short (2 mm) and long (40 mm) stroke for expansion and compression. A Tightening Torque table gives values in N·m, kg-m, and ft-lb for the wheel nut (98-118 N·m / 72-87 ft-lb), brake tube connector flare nut, back plate to axle case, shock absorber mounts (to body and axle tube), and upper/lower link attachments (all links 77-98 N·m / 57-72 ft-lb). An Inspection and Adjustment note directs the reader to Preload Adjustment for wheel bearing service.
