Nissan Micra Automatic Transaxle Cross-Section Diagram & Torque Specs (AT-2)

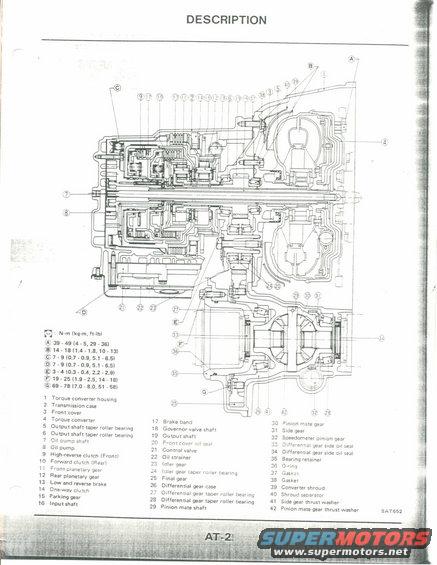

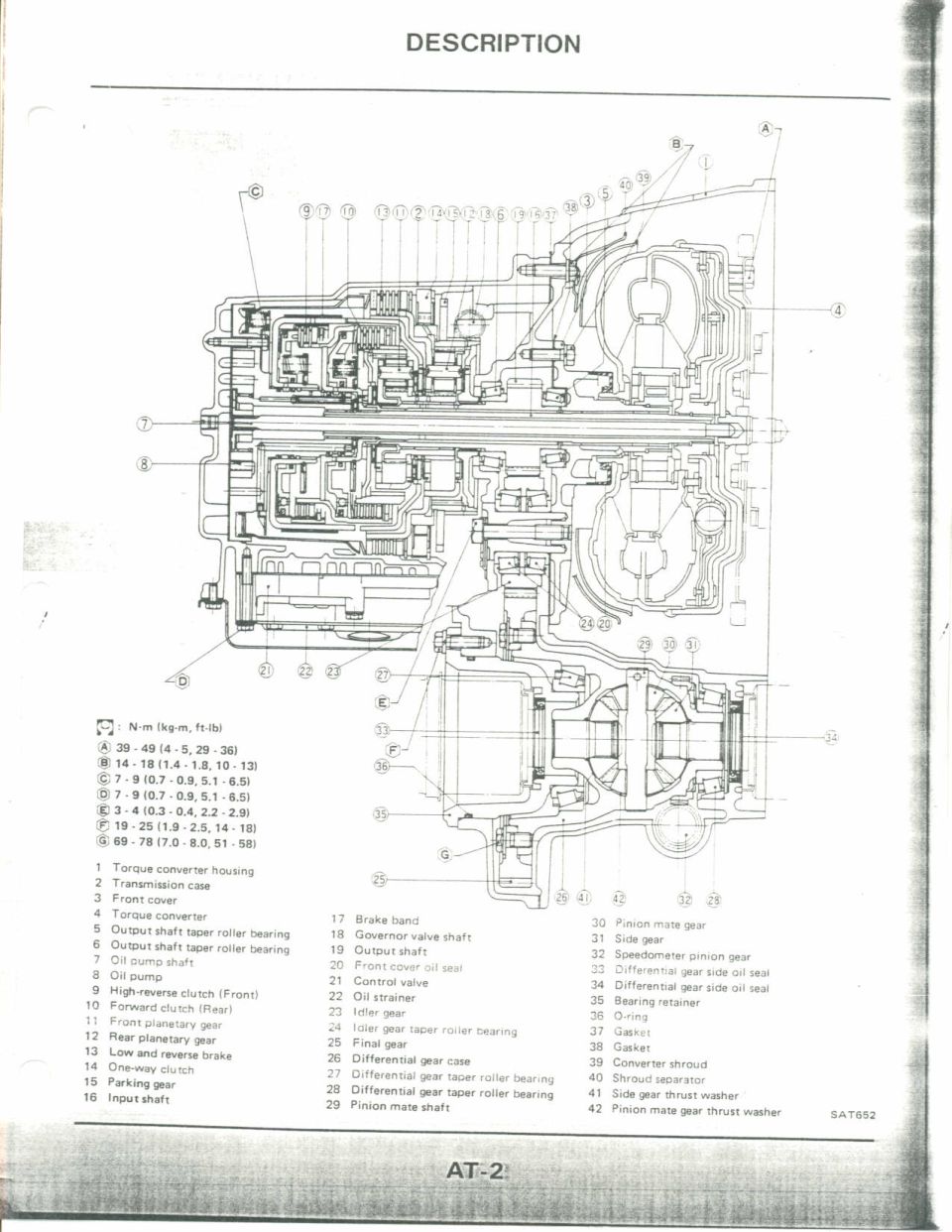

This is page AT-2 ("DESCRIPTION") from an automatic transmission/transaxle service manual section, showing a detailed cross-sectional (sectional) diagram of an automatic transaxle assembly. The diagram identifies 42 numbered components, including the torque converter and its housing, transmission case, oil pump and oil pump shaft, high-reverse (front) and forward (rear) clutches, front and rear planetary gears, low and reverse brake, one-way clutch, brake band, governor valve shaft, input and output shafts, control valve, oil strainer, idler gear, final gear, differential gear case and bearings, pinion mate shaft/gears, side gears, speedometer pinion gear, various oil seals, gaskets, O-ring, converter shroud, shroud separator, and thrust washers. Seven circled letter callouts (A through G) reference bolt torque specifications given in N·m, kg-m, and ft-lb — for example, A: 39-49 N·m (4-5 kg-m, 29-36 ft-lb) and G: 69-78 N·m (7.0-8.0 kg-m, 51-58 ft-lb). The illustration reference code is SAT652. A reader can use this page to identify internal transaxle components by name and location and to find fastener torque values for reassembly of the unit. The transverse layout with integrated final gear and differential indicates a front-wheel-drive automatic transaxle.
