Service manual page AT-31 on high-reverse clutch clearance with…

Service manual page AT-31 on high-reverse clutch clearance with retainer plate part table
Service manual page AT-31 on high-reverse clutch clearance with retainer plate part tableOriginal file
Service manual page AT-31 on high-reverse clutch clearance with retainer plate part table

87 Service ManualView all 403

Service manual page AT-24 with oil pump assembly diagrams Exploded diagram of automatic transaxle control valve body identifying each valve, spring, plug and separator Service manual page on automatic transmission control valve body with spring chart and disassembly diagrams Control valve body cleaning and assembly notes with valve body photos and separator plate inspection figures Service manual page AT-28 on automatic transaxle control valve body assembly and adjustment High-reverse clutch exploded diagram with piston, springs, plates, snap rings plus disassembly figures Service manual page AT-30 showing illustrated high-reverse clutch drum reassembly steps Service manual page AT-31 on high-reverse clutch clearance with retainer plate part table Forward clutch exploded diagram with piston, springs, drive and driven plates, snap rings plus service notes Low and reverse brake exploded diagram showing piston, retainer, drive and driven plates and snap ring stacked Brake band and band servo exploded diagram with servo piston, springs, O-rings, washer plus band inspection fi Service manual page on transmission governor valve with exploded diagram and spring chart Service manual page AT-36 on transmission planetary carrier inspection and output shaft disassembly Service manual page AT-37 showing transaxle output shaft and bearing retainer procedures Bearing retainer assembly steps: press seal and O-ring into place, install inner race with shim, cross-section Final drive disassembly and inspection: pinion mate shaft, side bearing races, side gear clearance 403photos in this albumView all

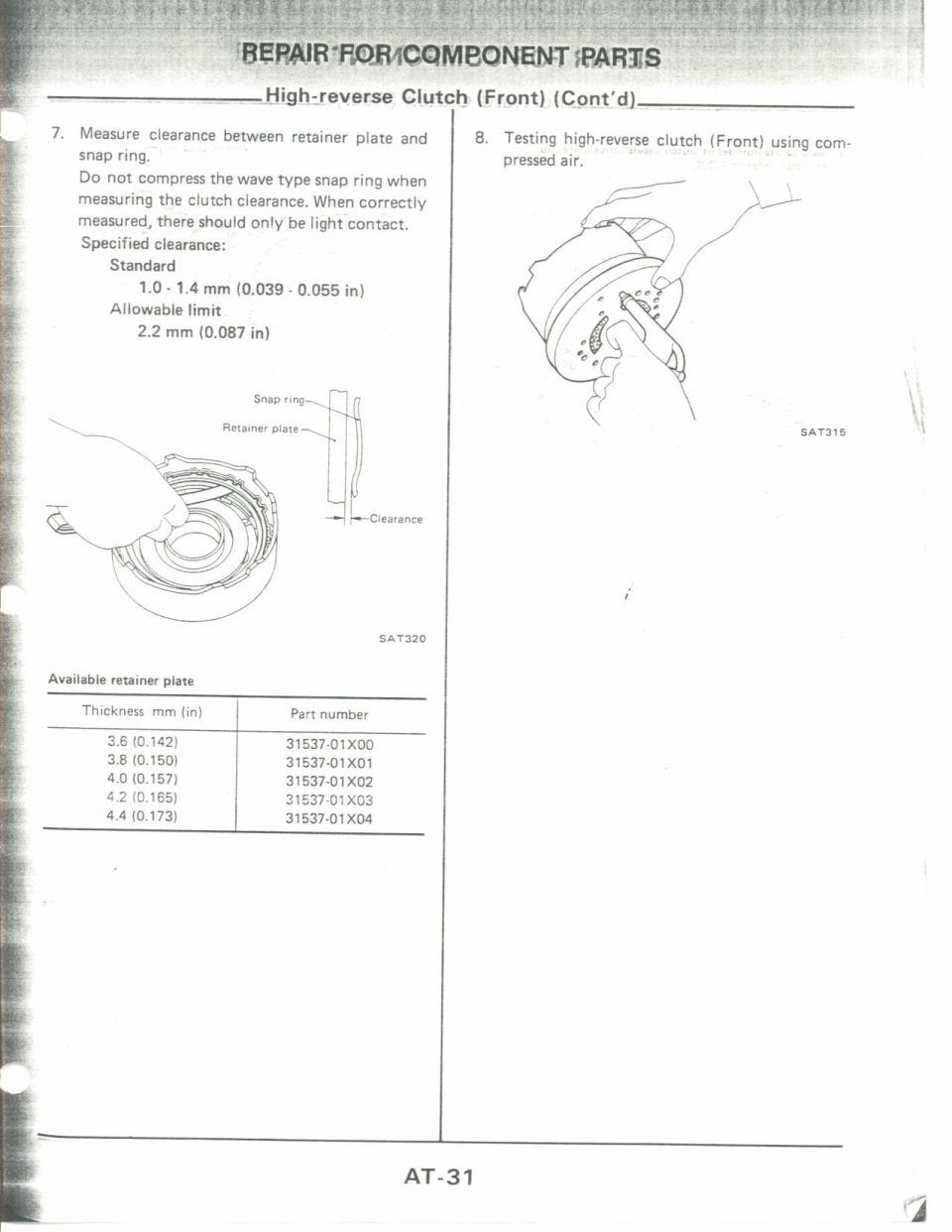

Photocopied factory service manual page AT-31, "Repair for Component Parts: High-reverse Clutch (Front)," covering retainer plate to snap-ring clearance measurement with a 1.0-1.4 mm standard and 2.2 mm limit. Line drawings show clearance measurement and compressed-air clutch testing, plus a retainer-plate thickness and part-number table (31537-01X00 through -01X04).

AI caption · Photo 213 of 412

Is this accurate? Sign in to help verify it.
